Retrofitting ski bag - AN91.22-P-0001A

MODEL 210.0

The ski bag can hold 2 pairs of skis.

When retrofitting, it is necessary to install the 70 liter fuel tank with  ski bag recess instead of the standard fuel tank.

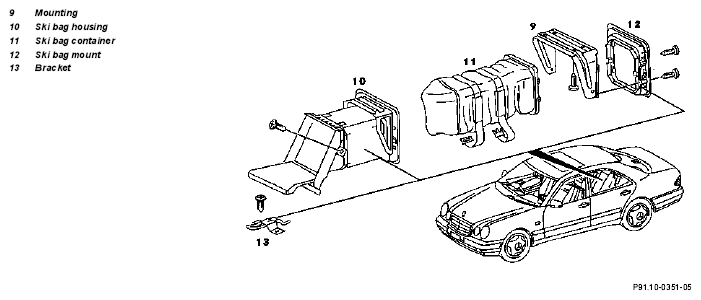

Fig 1: Identifying Ski Bag Housing, Ski Bag Container And Ski Bag Mount

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

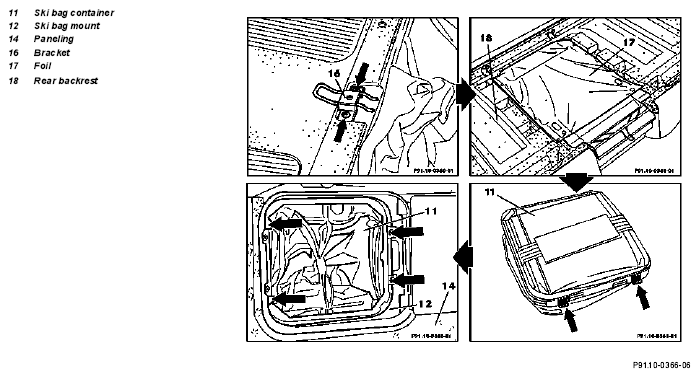

Fig 2: Identifying Panceling, Foil And Rear Backrest

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Remove rear seat and rear backrest		AR91.12-P-1700F
2	Disconnect ground lead from battery		AR54.10-P-0003A
3	Remove insulating mat in rear
4	Remove spare wheel
5	Remove paneling in trunk on right and front
6	Remove fuel tank		AR47.10-P-4100B
	Installation
7	Complete cutout for ski bag housing		AN91.22-P-0001-01A
			*WE58.40-Z-1010-03A
8	Assemble new fuel tank		AN91.22-P-0001-02A
9	Install fuel tank		AR47.10-P-4100B
10	Retrofit ski bag housing		AN91.22-P-0001-03A
11	Install paneling in trunk on right
12	Place spare wheel and carpeting in trunk
13	Screw bracket (16) for carbine hook onto cross member below rear seat cushion		2 screws
14	Remove foil (17) on rear backrest (18)
15	Remove rear seat and rear backrest		AR91.12-P-1700F
16	Install container for ski bag (11) and close cover
17	Fill fuel tank		AR47.10-P-4001B
18	Connect ground lead to battery		AR54.10-P-0003A
19	Carry out operational check	See operating instructions.

Parts required for installation are listed in the following parts documents:
