Retrofitting ski bag housing - AN91.22-P-0001-03A

  1. Screw holder (9) for ski bag housing onto dividing wall (2) from bottom so that the vertical sheet metal flange points to the rear.

    IMPORTANT 4 screws.

    Fig 1: Identifying Retrofitting Ski Bag Housing
    G04633011Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Screw ski bag housing (10) onto divider wall (2) from front.

    IMPORTANT 2 screws.

  3. Install and fasten paneling (14) in trunk.
  4. Insert mount (12) into ski bag housing (10) from rear and fasten to holder (9) with screws.

    IMPORTANT 4 screws.

  5. Remove perforated cutout for ski bag housing (10) in insulating mat (15).
  6. Position and fasten insulating mat (15) in rear.

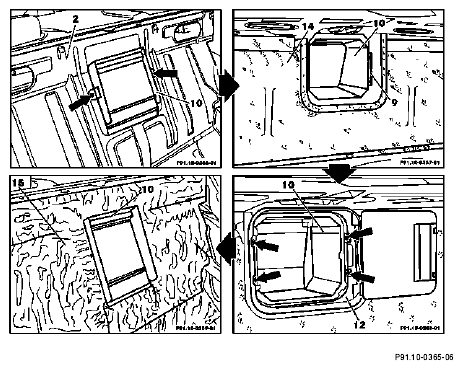

    Fig 2: Identifying Ski Bag Housing Onto Divider Wall From Front
    G04633012Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
