Retrofitting automatic child seat recognition (ACSR) - AN91.60-P-0002C

MODEL 210 from 1.6.97 to 30.6.98

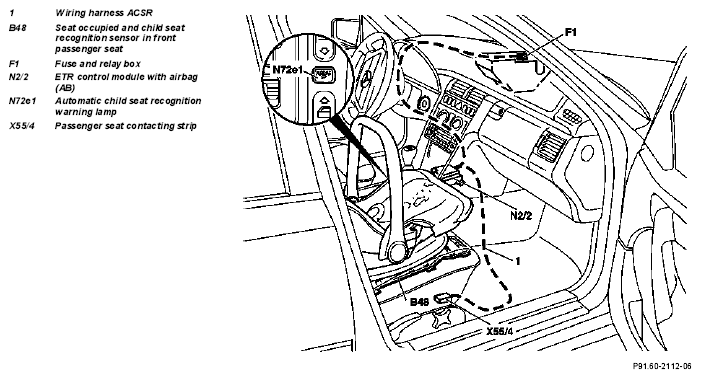

Fig 1: Identifying Retrofitting Automatic Child Seat Recognition (ACSR)
G04633083Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REFER TO SYSTEM WIRING DIAGRAMS Removal
1 Remove seat recognition and rubberized fiber matting
REFER TO TESTING & REPAIR     AR91.60-P-0720A
2 Check whether ACSR wiring harness is already present on wiring harness connector IMPORTANT If the 4-pin connector on the passenger seat is completely wired the ACSR wiring harness is already installed in the vehicle (do not perform steps 5 - 10)
3 Disconnect ground lead from battery
REFER TO TESTING & REPAIR     AR54.10-P-0003A
4 Remove cover on shift lever
5 Remove left bottom A-pillar paneling
6 Remove right front floor covering
REFER TO TESTING & REPAIR     AR68.20-P-2070F
7 Remove ashtray
8 Remove cover below left instrument panel on left
REFER TO TESTING & REPAIR     AR68.10-P-1500F
9 Open fuse box (F1)
REFER TO TESTING & REPAIR Installation
10 Install automatic child seat recognition (ACSR) wiring harness   AN91.60-P-0002-01C
11 Install rubberized fiber matting with seat recognition and automatic child seat recognition (ACSR)
REFER TO TESTING & REPAIR     AR91.60-P-0720A
12 Complete vehicle (items 9 - 3)
13 Check for proper function and put into operation IMPORTANT Use Babysafe child seat to test AN91.60-P-0002-03A
    IMPORTANT Read out DTC with HHT *WH58.30-Z-1036-13A
14 Airbag wiring diagram with ACSR
REFER TO SYSTEM WIRING DIAGRAMS     PE91.60-P-2000C
Commercially available tools

Number Designation
WH58.30-Z-1036-13A Handheld tester (HHT) 651 100 01 99
Parts ordering notes

Part no. Designation Quantity
A 210 540 58 33 Wiring harness 1
A 210 821 10 51 Lower control panel power window switch block with four switches with remote trunk release 1
A 210 821 11 51 Lower control panel power window switch block with four switches without remote trunk release 1
A 210 821 14 51 Lower control panel power window switch block with two switches with remote trunk release 1
A 210 821 15 51 Lower control panel power window switch block with two switches without remote trunk release 1
A 210 910 22 50 Rubberized fiber matting with ACSR textile 1
A 210 910 23 50 Rubberized fiber matting with ACSR leather 1
A 210 910 24 50 Rubberized fiber matting with ACSR AMG (E50) 1
A 002 546 70 40 Potential distributor, double 1
KG 68 Wooden cover (depending on equipment) 1
