Remove/install side window in load compartment - AR67.30-P-4050F

MODEL 210.2

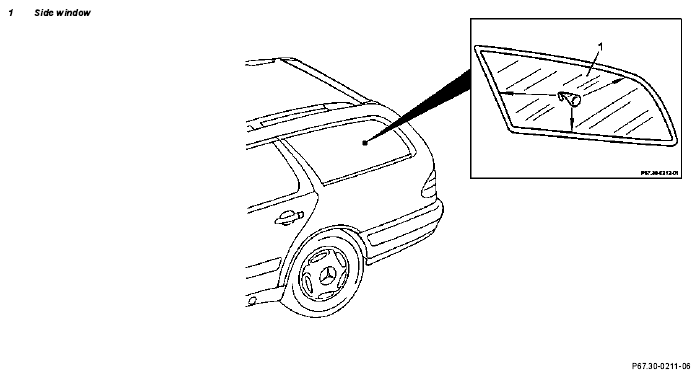

Fig 1: Identifying Side Window

	Remove
1	Prepare glue cartridge		AR67.10-P-1000-07P
		2-component repair kit for installing glued windows	*BR00.45-Z-1015-02A
2	Remove right side trim panel in rear		AR68.30-P-4780A
3	Remove paneling on C-pillar		AR68.30-P-4490FA
4	Remove rear roof frame paneling		AR68.30-P-4470A
5	Disconnect connector from antenna and glass breakage sensor on side window (1) and fasten to side window (1) with adhesive tape	Right side window (1) only glass breakage sensor connector
6	Remove molding from bottom of side window (1)		Figure
7	Remove C-pillar cover		Figure
8	Remove top cover		Figure
9	Remove visible rubber spacers		Figure
	Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out glued windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A
10	Cut out side window (1) with cutting blade	Secure side window (1) with the aid of an assistant to prevent it from dropping down.	AR67.30-P-4050-01F
			Figure
			*WH58.30-Z-1003-20A
11	Remove side window (1) from body with suction cups		*WE58.40-Z-1029-11A
	Install
12	Prepare body flange for installation of window		AR67.10-P-1501-01P
			Figure
			*WH58.30-Z-1003-20A
13	Replacing rubber spacers		AR67.20-P-2000-03F
14	Prepare window for installation		AR67.10-P-1000-03P
15	Align side window in body opening		AR67.30-P-4050-04F
16	Apply glue		AR67.10-P-1000-08K
		Betagun 2K electric cartridge gun	*WH58.30-Z-1002-20A
		Height of glue bead approx. 13 mm
		Install window within 10 minutes before adhesive force of glue starts to decrease
17	Installing side window		AR67.30-P-2305-03E
			*WE58.40-Z-1029-11A
			Curing time is approx. 1 hour, calculated from the time the side window is installed. Open a crank window in the vehicle to prevent the window from being pressed outward by air pressure when the door is closed.
18	Install top cover
19	Install cover on C-pillar
20	Install molding at bottom of side window
21	Install connector for antenna and glass breakage sensor on side window (1)
22	Install rear roof frame paneling		AR68.30-P-4470A
23	Install paneling on C-pillar		AR68.30-P-4490FA
24	Install side paneling in rear		AR68.30-P-4780A
