Retrofitting trunk lid emergency release - AZ88.50-P-0002F

MODEL 210 as of 1.3.97 with CODE (491) U.S. version electric emergency release

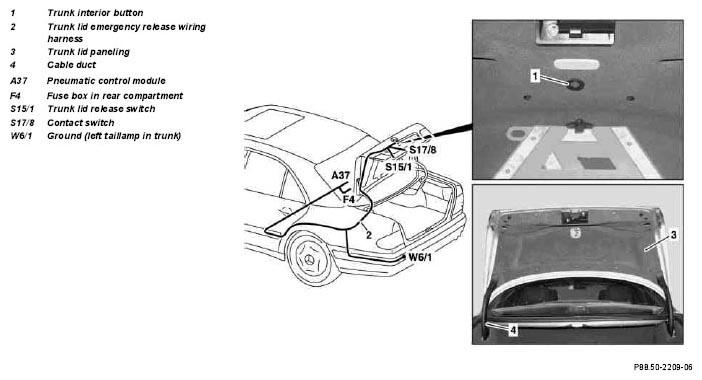

Fig 1: Identifying Trunk Lid Emergency Release Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Trunk Lid Emergency Release Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	The electric trunk lid emergency release does not operate when:  - the battery is disconnected or discharged	When the battery is removed/disconnected (e.g.: temporary vehicle shutdown) it is necessary to remove the striker eye.
	After installation of the trunk lid emergency release, the separate trunk lid locking function (trunk lid lock in 90° position) is no longer available.
	Check trunk lid remote opening feature for proper operation
	Removing
1	Remove rear seat and rear backrest
			AR91.12-P-1700F
2	Disconnect battery
			AR54.10-P-0003A
3	Remove trunk lid paneling (3), cable duct (4) and paneling on left side of trunk
4	Remove trunk lid lock (9)
	Remove trunk lid lock and striker eye, install and adjust		AR88.50-P-5020F
	Installation

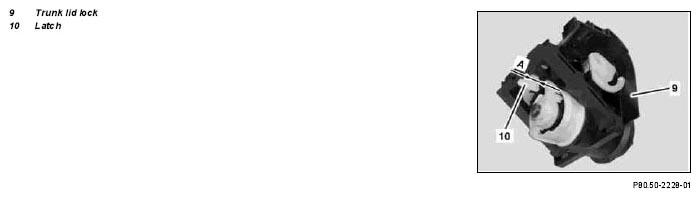

5	Cut off latch (10) in trunk lid lock (9) in area "A"
6	Install trunk lid lock (9)
	Remove trunk lid lock and striker eye, install and adjust		AR88.50-P-5020F
7	Retrofit trunk lid emergency release wiring harness (2)		AZ88.50-P-0002-05F
		Wiring harness repair kit.	Figure
8	Retrofit trunk interior button (1)		AZ88.50-P-0002-06F
9	Enter fuse assignment in fuse assignment plan
10	Fit remaining parts to vehicle	When installing trunk lid paneling, connect trunk interior button.
11	Carry out operational check
	Notes on electric trunk lid emergency release	Models 129, 202, 208, 210, 215, 220	AH88.50-P-0001-01A
12	Insert sheet for trunk lid emergency release in Owner's Manual	See Parts ordering note for order number.
