Retrofit infrared remote control additional receiver - AN80.30-P-0001B

MODEL 210.2

with DAS 2/2a

Connection schematic for infrared remote control additional receiver

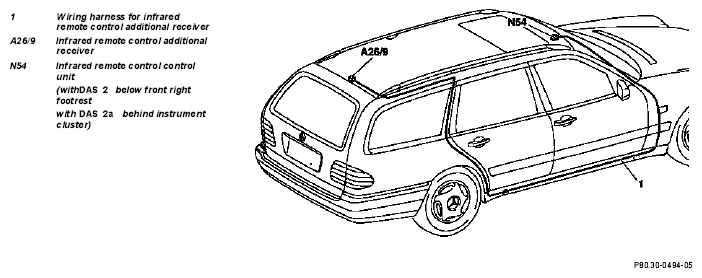

Fig 1: Identifying Infrared Remote Control Additional Receiver - Model 210.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Disconnect ground line from battery		AR54.10-P-0003A
2	Remove RCL control unit ( DAS 2  )	Expose only RCL control unit lines	AR80.30-P-4400FF
3	Remove instrument cluster ( DAS 2a  )		AR54.30-P-6015EA
4	Remove cover on A-pillar at bottom right	On vehicles with DAS 2a  perform steps 4-6 and 8-11 on left.
5	Remove door sill moldings on right front and rear doors
6	Remove B-pillar paneling on bottom right
7	Remove rear seat
8	Open wiring duct cover in right footwell and on door sill on right front and rear doors
9	Remove side paneling in rear on right		AR68.30-P-4780B
10	Remove paneling on right C-pillar		AR68.30-P-4490EA
11	Remove roof frame paneling on center and right		AR68.30-P-4470A
	Install
12	Retrofit wiring harness for additional receiver		AN80.30-P-0001-01A  *WH58.30-Z-1004-20A
13	Retrofit additional receiver		AN80.30-P-0001-02A
14	Install in the reverse order	Steps 11 -1.
15	Carry out function check
