Removing and installing amplifier (left/right speakers) control module - AR82.62-P-7720EE

MODEL 210.2 with CODE (810) Sound system

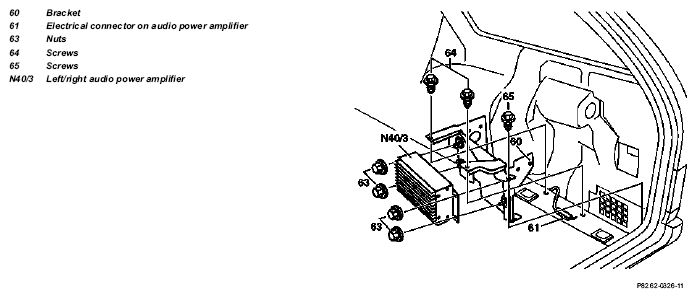

Fig 1: Identifying Amplifier Control Module Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Disconnect ground cable from battery	Insulate cable terminal on ground lead to protect against unintended contact between disconnected ground cable and ground point W10	AR54.10-P-0003A
2	Open first aid kit cover and remove	Right load compartment
3	Unscrew screws (64) and screw (65)
4	Disconnect electrical connector on audio power amplifier (61)	Disconnect electrical connection (61) from connector by tipping up
5	Unscrew nuts (63) and remove left/right audio power amplifier (N40/3) from bracket (60)
6	Reinstall in opposite order
7	Check for proper function
