Retrofitting CD changer - AZ82.64-P-0001D

MODEL 210.2 as of 1.7.98 up to 30.6.99

with CODE (316) MB GSM cellular telephone (D2B)

except CODE (351) Auto Pilot System (APS)

except CODE (813) Voice control system (VCS)

only in combination with Audio 10 or Audio 30 radio

MODEL 210.2 as of 1.7.99

with CODE (316) MB GSM cellular telephone (D2B)

with CODE (352a) COMAND operating and display system

with CODE (353) Audio 30 APS

except CODE (813) Voice control system (VCS)

in combination with all radios in the Audio series (except Audio 5), COMAND or Audio 30

APS (only devices TN A 208 820 ... ...)

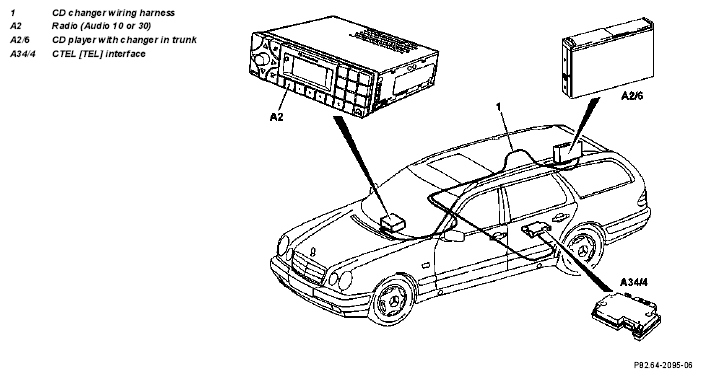

Fig 1: Identifying CD Changer Components Location - Model 210.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on fiber optic	Models 129, 168, 170, 202, 208, 210, 220.	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove left and right front seats	Only in vehicles fixed telephone installation (code 316) or TELE AID (code 347).
3	Remove radio
4	Lift floor covering at left front and right		AR68.20-P-2050F
5	Open left and right wiring ducts
6	Fold away rear seat
7	Remove paneling in load compartment on right
	Install
	Notes on D2B ring	Determine current configuration in vehicle: on model 210.2.	AH82.70-P-0001-03B
8	Install optical wave guide module	For extension of optical wave guide ring.
			AR82.70-P-0004-01A
9	Expand D2B fiber optic cable wiring harness and retrofit power supply.	In vehicles fixed telephone installation or TELE AID (code 316 or 347).	AZ82.64-P-0001-01H
	Cover optical wave guide	Do not kink or stretch D2B fiber optic. Install covers on fibre-optic coupling and equipment connector.	AR82.95-P-0005-01A
10	Retrofit CD changer in trunk		AZ82.64-P-0001-05C
11	Fit remaining parts to vehicle 7 - -1
12	Perform startup and function check	Code CD changer to vehicle with HHT.	*WH58.30-Z-1036-13A
13	Enable radio	Only when installing new radio

Commercially available tools

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99

Parts ordering notes

Part no.	Designation	Quantity
Group 82 (see EPC)	CD changer	1
Group 82 (see EPC)	Fiber optic cable module (order with length specification 5605 mm and 5780 mm)	as B.
KG82 (see EPC)	Power supply for CD changer on radio	1
Group 82 (see EPC)	Power supply for CD changer on COMAND	1
Group 82 (see EPC)	Holder for CD changer	1
Group 82 (see EPC)	D2B clutch housing	1
