Retrofitting wiring harness of CD changer - AZ82.64-P-0001-01H

Model 210.2 as of 1.7.98 with code 316, 347 without code 351, 813b

1. Check fiber optic cable routing in load compartment on right and below left rear seat and note components connected in D2B ring.

   The maximum component sequence is:

   • Radio (A2)
   • CD changer (A2/6)
   • Voice control module (A35/11)
   • CTEL interface (A34/4) or TELE AID control module (A35/8)
   • Radio (A2).

   If a component is not installed its position in the maximum sequence is eliminated and resulting in a new sequence. This allows determination of the route for the fiber optic cables in the vehicle.

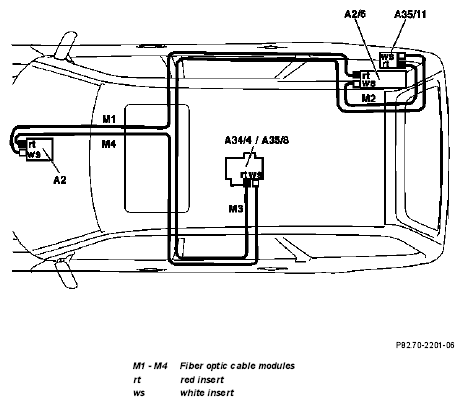

   Fig 1: Identifying CD Changer Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   In this special case it is only permissible to install a CTEL interface (A34/4) or a TELE AID control module (A35/8) below the left rear seat.

2. Remove fiber optic cable module M1 installed as standard equipment from D2B connectors on radio (A2) and from corresponding control module below left rear seat (A34/4) or (A35/8) and tie back (no longer required).
3. The D2B fiber optic cable ring is supplemented with two new fiber optic cable modules M1 and M2.

   Length M1 = 5605 mm

   Length M2 = 5780 mm

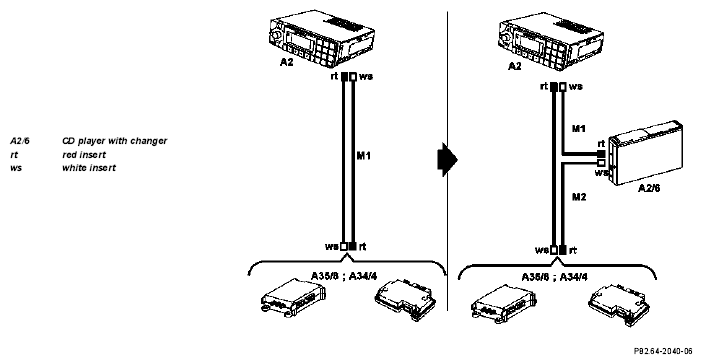

   Fig 2: Fiber Optic Cable Module Function Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

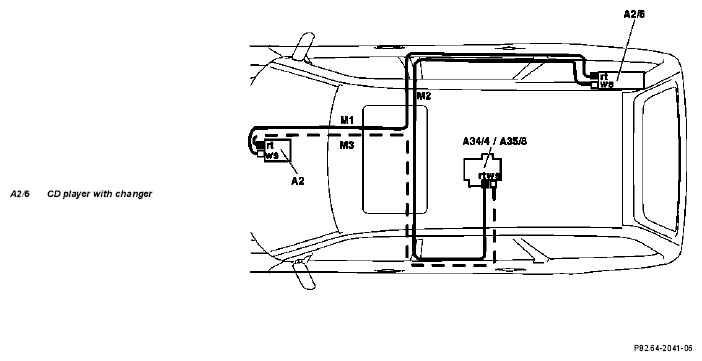

4. Route new fiber optic cable modules M1 and M2 as shown in figure and if possible along existing fiber optic cables in vehicle.

   Observe special guidelines for routing fiber optic cables. The module M3 (dotted line) remains unchanged (standard equipment).

5. Route white insert (ws) from fiber optic cable module M2 and red insert (rt) from fiber optic cable module M1 in load compartment on the right into a new connector and close connector.
6. Route white insert (ws) from module M1 into connector on radio (A2) and close connector.
   Fig 3: Identifying CD Changer Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Route red insert (rt) from module M2 into connector below left rear seat (A34/4) and (A35/8), close connector and connect to associated control module.
8. Prepare CD changer (1) power supply wiring harness as shown in figure.

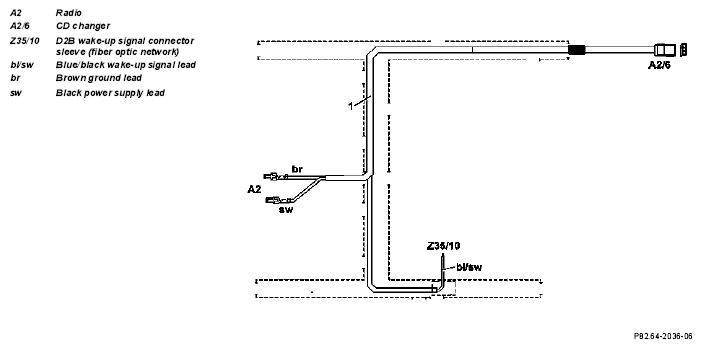

   Fig 4: CD Changer Wiring Harness Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
9. Route CD changer (1) power supply wiring harness from load compartment to right wiring duct as shown in figure.

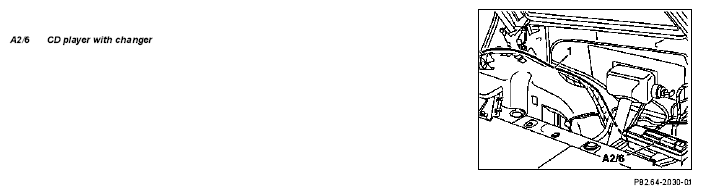

   Fig 5: Identifying CD Player With Changer

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
10. Route power supply wiring harness (1) in under passenger seat below carpeting to radio (A2) as shown in figure and fasten with felt.

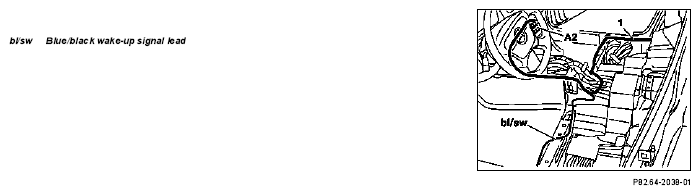

    Fig 6: Identifying Blue/Black Wake-Up Signal Lead

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
11. Route tie-out from wiring harness (1) in radio shaft as shown in figure.
    Fig 7: Identifying Power Supply Wiring Harness, Black 10-Pin Connector And D2B Connector

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

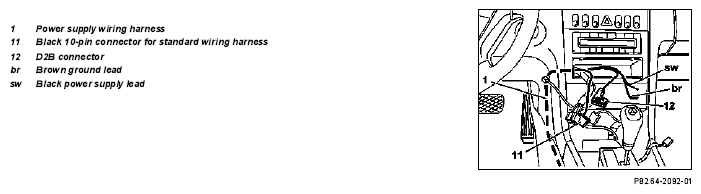

12. Route black lead (sw) into chamber 5 and brown lead (br) into chamber 6 of black 10-pin connector of standard wiring harness.

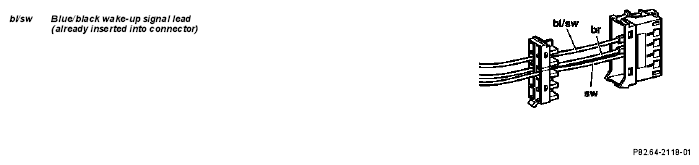

    Fig 8: Identifying Black 10-Pin Connector

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
13. Route blue/black lead (bl/sw) from wiring harness (1) to left wiring duct and from there continue in area of left B-pillar.
    Fig 9: Identifying Wiring Harness

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
14. Solder blue/black lead (bl/sw) to blue/black lead (bl/sw) of D2B wake-up signal connector sleeve (fiber optic network) (Z35/10) with solder connector.
    Fig 10: Identifying D2B Wake-Up Signal Connector Sleeve

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
