Retrofitting CD changer - AZ82.64-P-0001A

MODEL 210.0 from 1.7.98 to 30.6.99 except CODE (316) MB D-network car phone (D2B) except CODE (317) portable D-network cell phone (D2B) except CODE (347) TELE AID emergency call system (D2B) except CODE (351) auto-pilot system (APS) only in combination with Audio 10 or Audio 30 radio

MODEL 210.0 as of 1.7.99 with CODE (352a) COMAND operating and display system with CODE (353) Audio 30 APS except CODE (316) MB D-network car phone (D2B) except CODE (317) portable D-network cell phone (D2B) except CODE (347) TELE AID emergency call system (D2B) in combination with all Audio series radios (except radio 5), COMAND or Audio 30 APS (only units with TN A 208 820 ... ...)

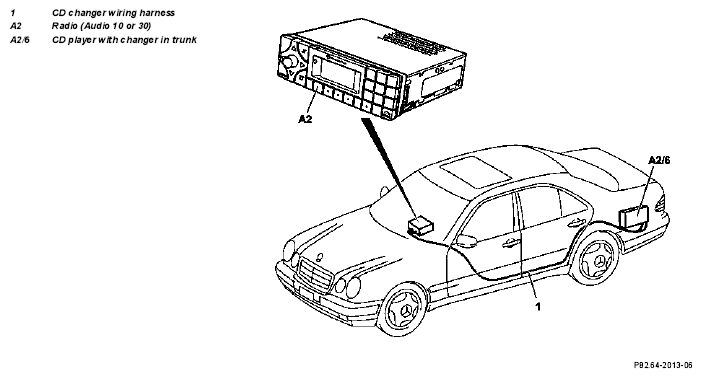

Fig 1: Identifying CD Changer Location - Model 210.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on the optical wave guide	Models 129, 168, 170, 202, 208, 210, 220.	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003A
2	Remove driver's seat
3	Remove radio
4	Lift floor covering on driver's side
			AR68.20-P-2050F
5	Open left wiring duct
6	Remove rear seat and rear seat backrest
			AR91.12-P-1700F
7	Remove panel in trunk on left
	Install
8	Retrofit D2B wiring harness for CD changer		AZ82.64-P-0001-01A
	Cover optical wave guide	Do not kink or stretch D2B fiber optic.  Install covers on fibre-optic coupling and equipment connector.	AR82.95-P-0005-01A
9	Retrofit CD changer in trunk		AZ82.64-P-0001-05A
10	Fit remaining parts to vehicle 7 -1
11	Perform startup and function check	Code CD changer to vehicle with HHT.	*WH58.30-Z-1036-13A
12	Enable radio code	Only when installing new radio
