Retrofitting CD changer in trunk - AZ82.64-P-0001-05A

Model 210.0 as of 1.7.98 except code 351 in combination with Audio 10 or Audio 30 radio

1. Screw CD player with changer (A2/6) to mount (20) with 4 short screws (21).

   The maximum length of the mounting screws (21) is indicated on the CD player housing.

   Fig 1: Identifying CD Player With Changer

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Connect fiber optic cable D2B (22) and power supply (23).

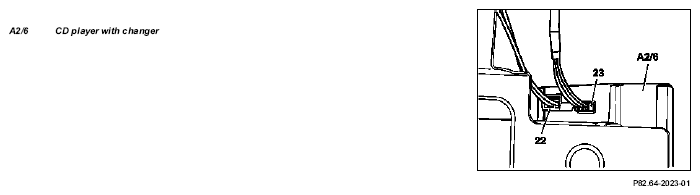

   Fig 2: Connecting Fiber Optic Cable D2B And Power Supply

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Install mount (20) and CD player with changer (A2/6) in left trunk recess with sheet metal screws (24) as shown in figure.

   Do not kink or stretch fiber optic cable!

   Routing radii must be greater than 25 mm!

   Fig 3: Identifying CD Player With Changer

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
