Retrofit xenon headlamps - AN82.10-P-0001FB

MODEL 210.### 1# as of 1.7.99

Illustrated on model 210 sedan

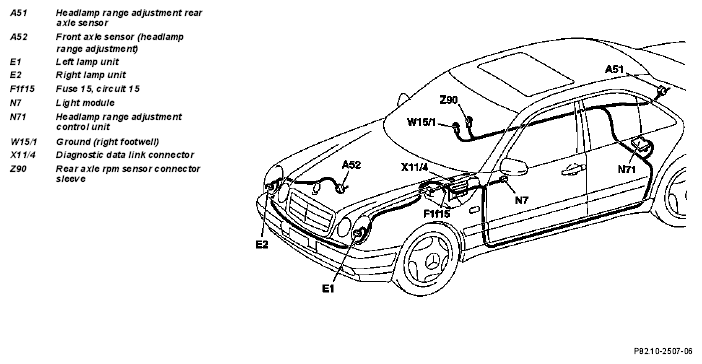

Fig 1: Identifying Xenon Headlamps Components Location - Model 210 Sedan

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/risk of fire  due to highly flammable materials in the area of damaged xenon bulbs Risk of injury  from UV light, hot components at xenon headlamps and glass splinters when xenon bulbs crack Risk of poisoning  from inhaling mercury vapors and from swallowing/skin contact with poisonous salts and mercury compounds	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure the work area is adequately ventilated.	AS82.10-Z-0001-01A
	Retrofit xenon headlamps	Model 210 as of 1.7.99	AH82.10-P-1003-01F
1	Disconnect ground line of battery
			AR54.10-P-0003A
2.1	Fold forward rear seat cushions	Model 210.2 only
2.2	Remove rear seat cushion	Model 210.0 only
	Remove/install rear seat and rear seat backrest	Only remove rear seat cushion.	AR91.12-P-1700F
3	Remove lower paneling from left A-pillar
4	Remove lower paneling from left and right B-pillars
5	Remove left front carpeting
6	Remove door sill moldings from left and right front and rear door
7	Open left and right cable duct cover
8	Remove left footrest
9	Remove light module
			AR54.25-P-3260A
10.1	Unfasten windshield washer fluid reservoir and place to one side
11	Remove headlamp
			AR82.10-P-4730EB
12	Remove air filter housing
13	Slacken coolant expansion reservoir and place to the side	Do not disconnect coolant hose.
14	Remove plastic protective grille in front of condenser	If installed.
15	Remove engine compartment paneling at bottom or soundproofing
	Install
16	Install headlamp range adjustment wiring harness		AN82.10-P-0002-03FB
17	Retrofit headlamp cleaning system	For vehicles without headlamp cleaning system (code 600) Refer to installation manual.	AN82.15-P-0001FF
18	Retrofit headlamp range adjustment rear axle sensor		AN82.10-P-0003-01FF
19	Retrofit headlamp range adjustment front axle sensor		AN82.10-P-1000-01FF
20	Install in the reverse order	Operation step 15 -1.
21	Carry out function check
22	Drive vehicle a short distance	Do not switch on light, risk of being dazzled!
23	Check headlamp adjustment	Do not switch on light, risk of being dazzled!
			AP82.10-P-8260A
24	Set zero position of headlamps using HHT	refer to Diagnosis Manual, Body
25	When modifying the package, subsequently enter code or designation of corresponding special equipment on vehicle data card and FDOK	Code 612
