Retrofit cell phone - AN82.70-P-0002D
MODEL 210.2 as of 1.7.98 up to 30.6.99 except CODE (278) Complete telephone preinstallation without portable with CODE (750a) MB radio Audio 30 RDS except CODE (347) TELE AID emergency call system (D2B) with CODE (750a) MB Audio 30 RDS radio with CODE (819) 6-disk CD changer except CODE (273) Provision for D-network portable CTEL in combination with D2B fiber optical cable
MODEL 210.2 as of 1.7.99 up to 30.6.00 except CODE (278) Complete telephone preinstallation without portable except CODE (347) TELE AID emergency call system (D2B) except CODE (351) Auto Pilot System (APS) with CODE (819) 6-disk CD changer in combination with D2B fiber optical cable and COMAND or Audio series radio
| Notes on telephone retrofitting | Models 129, 168, 170, 208, 210. | AH82.70-P-0001-04A | |
| Notes on fiber optic | Models 129, 168, 170, 202, 208, 210, 220. | AH82.70-P-0001-02A | |
| Removal | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove left and right front seats | ||
| 3 | Lift floor covering at left front and right | ||
| AR68.20-P-2050F | |||
| 4 | Open left and right wiring ducts | ||
| 5.1 | Remove center console | ||
| 5.2 | Remove cover from center console | ||
| AR68.20-P-2350F | |||
| 6 | Remove A-pillar paneling at bottom | ||
| 7 | Fold away rear seat | ||
| 8 | Remove paneling in load compartment on right | ||
| 9 | Open front fuse and relay box | ||
| 10 | Open rear compartment fuse box | ||
| 11 | Remove A-pillar paneling at top | ||
| 12 | Remove overhead panel | ||
| 13 | Detach front and rear roof lining | ||
| Install | |||
| 14 | Install optical wave guide module | ||
| AR82.70-P-0004-01A | |||
| 15 | Retrofit fiber optic wiring harness | AN82.70-P-0002-01E | |
| 16 | Retrofit wiring harness for Nokia 3110 CTEL | AN82.70-P-0002-03F | |
| 17 | Installing handsfree system microphone | ||
| AR82.70-P-8969C | |||
| 18 | Retrofit roof antenna | AN82.70-P-8951-06B | |

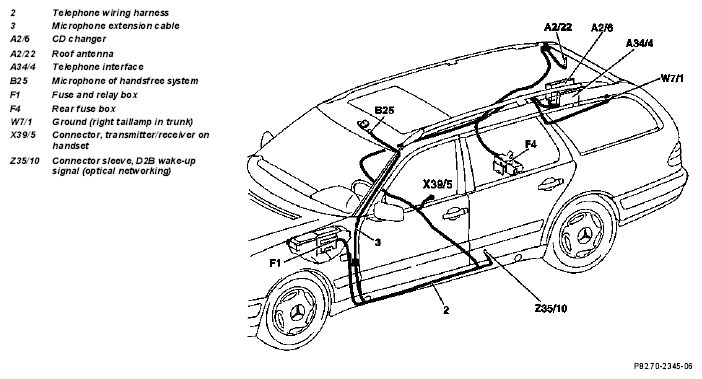

| Figure | |||
| Figure | |||
| Depending on the installation location of the Nokia 3110 portable CTEL, different parts to be ordered. Please discuss the installation location with the customer. | |||
| 19.1 | Install Nokia 3110 portable CTEL bracket in armrest | ||
| AR82.70-P-8918C | |||
| 19.2 | Install bracket for Nokia 3110 portable CTEL (telephone) on center console | ||
| AR82.70-P-8918F | |||
| 20 | Install Nokia 3110 CTEL [TEL] interface | ||
| AR82.70-P-7379J | |||
| 21 | Fit parts to vehicle 13-1 | ||
| 22 | Perform startup and function check | *WH58.30-Z-1036-13A |
Commercially available tools
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1036-13A | Handheld tester (HHT) | 651 100 01 99 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| Design Group 82 (see EPC) | Nokia 3110 TS cellular phone | 1 |
| Design Group 82 (see EPC) | Control module bracket (order in accordance with vehicle equipment) | 1 |
| Design Group 82 (see EPC) | Control module | 1 |
| Design Group 82 (see EPC) | Fiber optic cable module (order with length specification 540 mm) | as required |
| Design Group 82 (see EPC) | D2B clutch housing | 1 |
| Design Group 82 (see EPC) | Handsfree microphone (order in accordance with vehicle equipment) | 1 |
| Design Group 82 (see EPC) | Roof antenna | 1 |
| Design Group 82 (see EPC) | Cap | 1 |
| Design Group 82 (see EPC) | Wiring harness for Nokia 3110 CTEL | 1 |
| Design Group 82 (see EPC) | Microphone cable | 1 |
| Additionally for installation in armrest | ||
| Design Group 82 (see EPC) | Mount | 1 |
| Design Group 82 (see EPC) | Plate | 1 |
| Design Group 82 (see EPC) | Cable | 1 |
| Additionally for installation in center console | ||
| A 210 680 21 31 | Console for Nokia 3110 portable CTEL | 1 |
| A 168 820 01 51 | Bracket | 1 |
| Design Group 82 (see EPC) | Plate | 1 |
