Removing and installing heater housing - AR83.25-P-1000K
MODEL 208
| Removal, installation | |||
| Risk of injury to skin and eyes from scalding with hot coolant which splashes out. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles. Wear protective gloves, protective clothing and eye protection. |
AS20.00-Z-0001-01A | |
| 1 | Drain coolant | AR20.00-P-1142HA | |
| 2 | Remove water collector | AR83.25-P-1402K | |
| 3 | Remove hot water feed and return hoses | ||
| 4 | Remove instrument panel | AR68.10-P-1000K | |
| 5 | Remove passenger airbag | AR91.60-P-0680K | |
| 6 | Remove insulating mat | ||

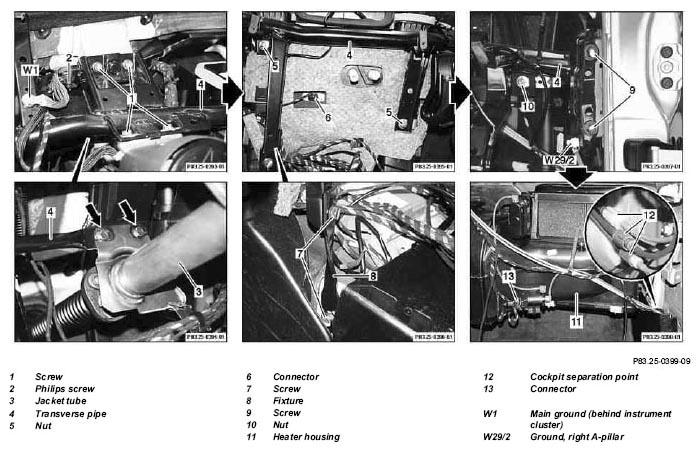

| N | Unscrew screws (1) | ||
| 8 | Remove main ground (W1) | ||
| 9 | Unscrew Phillips screw (2) from cable duct | ||
| 10 | Unscrew nuts (arrow) and unhook jacket tube off transverse pipe (4) | ||
| 11 | Unscrew nuts (5) | ||
| 12 | Pull off connector (6) on heater core temperature sensor | ||
| 13 | Unscrew screws (7) and remove holder (8) | ||
| 14 | Remove air ducts to side nozzles and rear air ducts on left and right | ||
| 15 | Expose electric wiring | ||
| 16 | Remove ground, right A-pillar (W29/2) | ||
| 17 | Unscrew nut (10) | ||
| 18 | Unscrew left and right screws (9) on A-pillar | ||
| 19 | Remove transverse pipe (4) | ||
| 20 | Disconnect vacuum lines from cockpit separation point (12) | ||
| 21 | Pull off connector (13) | ||
| 22 | Remove heater housing (11) | ||
| 23 | Install in opposite order |
