Removing and installing sliding/pop-up roof frame - AR77.20-P-3000K

MODEL 208.3

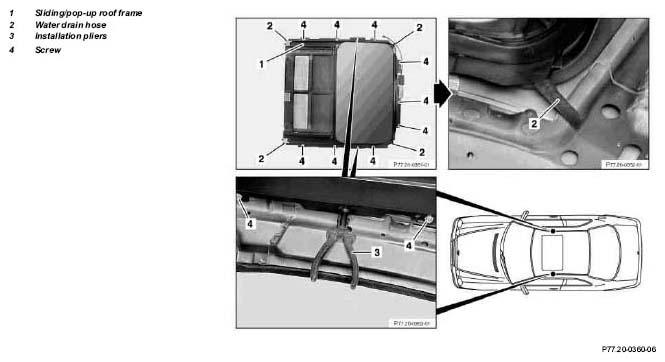

Fig 1: Identifying Sliding/Pop-Up Roof Frame Remove/Install Components

	Removal, installation
1	Close sliding/pop-up roof
2	Remove overhead control panel control module		AR82.20-P-1000K
3	Remove headliner		AR68.30-P-4300K
4	Pull off water drain hoses (2)
5	Position installation pliers (3)		Fig 2
6	Unscrew screws (4)		*BA77.20-P-1003-01A
7	Put down backrest on front seats
8	Remove sliding/pop-up roof frame (1) with help of second mechanic	Installation: Replacing ↓
		Transfer sliding/pop-up roof panel	AR77.20-P-1000K
		Transfer lining on sliding/pop-up roof	AR77.20-P-0500K
		Adjust sliding/pop-up roof panel	AR77.20-P-1100K
9	Reinstall in opposite order
10	Synchronize sliding/pop-up roof		GF77.20-P-3002A
11	Check sliding/pop-up roof for proper function

ELECTRIC SLIDING ROOF

Number	Designation		Model 208.3
BA77.20-P-1003-01A	Screw on sliding/pop-up roof frame	Nm	8

Fig 2: Identifying Installation Pliers For Sliding Roof Frame (202 589 01 37 00)
