Adjusting sliding/pop-up roof cover - AR77.20-P-1100K

MODEL 208.3

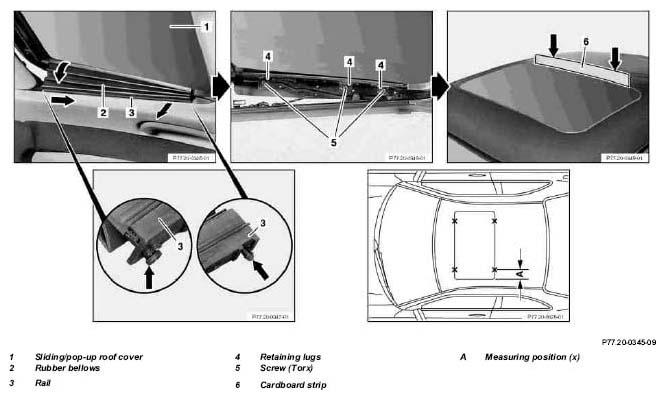

Fig 1: Identifying Sliding/Pop-Up Roof Cover Adjusting Components

REVISIONS

30.7.97	Steps in procedure table changed	Test adjustment value for sliding/pop-up roof added to step 6.
		Adjustment of seal on sliding/pop-up roof cover added to step 8.	AR77.20-P-1360K

	Removal, installation
1	Close sliding/pop-up roof cover (1) from sliding position and push lining toward rear
2	Unhook rubber bellows (2) from sliding/pop-up roof cover (1)
3	Remove rail (3) in direction of arrow	First unclip rail at front
	Adjustment
4	Loosen screw (5)
5	Insert cardboard strip (6) into sealing joint at rear	Cardboard strip (6): 550 mm long and approximately 2 mm thick
6	Adjust sliding/pop-up roof cover (1) in relation to exterior roof surface and tighten screws (5).		*BA77.20-P-1004-01A
			*BE77.20-P-1001-01A
			*BE77.20-P-1002-01A
7	Check sliding/pop-up roof for proper function and fit
8	Reinstall in opposite order	If wind noises are present↓ Adjust seal on sliding/pop-up roof cover	AR77.20-P-1360K

TEST AND ADJUSTMENT VALUES FOR SLIDING/POP-UP ROOF

Number	Designation			Model 208.3
BE77.20-P-1001-01A	Gap dimension	Sliding/pop-up roof cover, front	mm	0,15
		Sliding/pop-up roof cover, side and rear	mm	0,30
BE77.20-P-1002-01A	Height adjustment	Measuring position "A" (x)	mm	140
		Front: lower than exterior roof surface	mm	0-1
		Rear: higher than exterior roof surface	mm	0-1

ELECTRIC SLIDING ROOF

Number	Designation		Model 208.3
BA77.20-P-1004-01A	Screw for sliding/pop-up roof cover on tilting bracket	Nm	5
