Removing and installing side air nozzle - AR68.10-P-1100K

MODEL 208

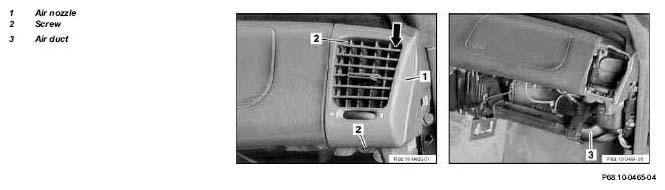

Fig 1: Identifying Side Air Nozzle Remove/Install Components

	Removal, installation
1	Remove bottom section of instrument panel on driver's and passenger sides	Driver's side	AR68.10-P-1505K
		Passenger side	AR68.10-P-1507K
2	Unscrew screw (2)
3	Pull catch (arrow) down and remove air nozzle (1)	When installing the air duct (3) check installation position and attach air nozzle (1)
4	Reinstall in opposite order
