Removing and installing bottom section of instrument panel on passenger side - AR68.10-P-1507K
MODEL 208
| Removal, installation | |||
| 1 | Remove cover below instrument panel (on right) | AR68.10-P-1520K | |
| 2 | Remove glove compartment | AR68.10-P-1400K | |
| 3 | Unclip side cover and remove | ||

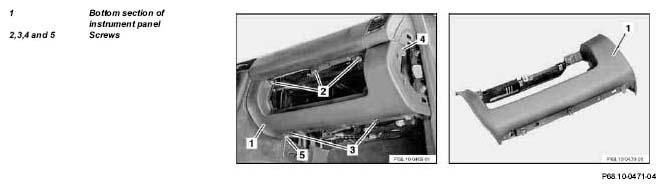

| 4 | Unscrew screws (2, 3, 4 and 5) and remove bottom section of instrument panel (1) | ||
| 5 | Reinstall in opposite order |
