Remove/install the suspension assembly - AR32.25-P-1017IW

MODEL 220.083 /084 /087 /183 /184 /187

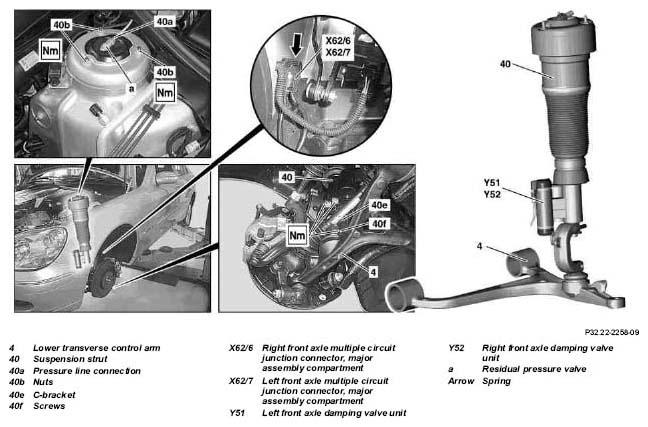

Fig 1: Identifying Suspension Assembly Remove/Install Components (Model 220.083)

	Remove/Install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Special information on AIRmatic		AH32.22-P-1000-02I
	Lethal injuries  are possible if vehicle slips off of lifting platform	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove front road wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
2	Empty the suspension strut (40) in question using STAR DIAGNOSIS	Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A
3	Unscrew pressure line connection (40a)	Residual pressure in strut up to 3.5 bar. If the residual pressure valve (a) is damaged, replace the suspension strut (40). Plug the pressure line with blind plug for the duration of the repair operations. If pressure line connections or pressure lines are damaged:↓
		Repair AIRmatic pressure line connection Installation  : Check pressure line O-ring and replace if necessary	AR32.22-P-2001-02I
			*BA32.25-P-1003-04B
4	Unscrew nuts (40b) on front end	Installation:  Fit nuts (40b) and tighten after filling the suspension strut with the vehicle in the ready to drive condition.	*BA32.25-P-1001-04B
5	Disconnect front axle electrical distributor connector, major assembly compartment (X62/6) and right front axle electrical distributor connector, major assembly compartment (X62/7)	Connectors of damper valve unit and rpm sensor. To disconnect, press in the spring (arrow).
6	Detach suspension strut (40) at the top of the C-bracket (40e)		*BA32.25-P-1010-04B
7	Remove spring strut (40) downwards towards the side
		If replacing or reinstalling the spring struts (40), check condition of spring struts and if necessary: ↓	AR32.25-P-1017-02I
		Dispose of suspension strut. Installation:  When installing, first tighten the nuts at the top (40b).	OS32.25-P-0122-01I
			*BA32.25-P-1001-04B
8.1	Detach brake line bracket at C-bracket (40e) and C-bracket (40e) on lower transverse control arm (4)	If necessary.
		Check boot on ball joint in lower transverse control arm (4) for damage, if necessary: ↓
		Replace lower transverse control arm Installation:  After installation the bolts (40f) must terminate at least flush with the C-bracket (40e) or be slightly recessed in it.	AR33.20-P-0510IW
		C-bracket to lower transverse control arm	*BA32.25-P-1011-04B
9	Install in the reverse order
10	Fill suspension struts (40) in question using STAR DIAGNOSIS	Diagnosis system STAR DIAGNOSIS Fill to 5 bar. The wheels must not touch the ground while pressurizing because the air bellows in the spring strut (40) will be destroyed if pressurized with the suspension compressed.	*WH58.30-Z-1048-13A
11	Check AIRmatic for leaks.		AR32.22-P-8100I

STRUTS

Number	Designation		Models 220.083/084/087/183/184/187
BA32.25-P-1001-04B	Nut, front suspension strut to front end	Nm	20
BA32.25-P-1003-04B	Air suspension pressure line to front suspension strut	Nm	5
BA32.25-P-1010-04B	Bolt, suspension strut bracket to C-bracket	Nm	60
BA32.25-P-1011-04B	C-bracket to lower transverse control arm	Nm	20

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
