Valve unit, location/task/design/function - GF32.50-P-4200A: Notes
MODEL 215, 220, 230 up to 28.2.06 with CODE (487) Active body control (ABC)
shown on model 230

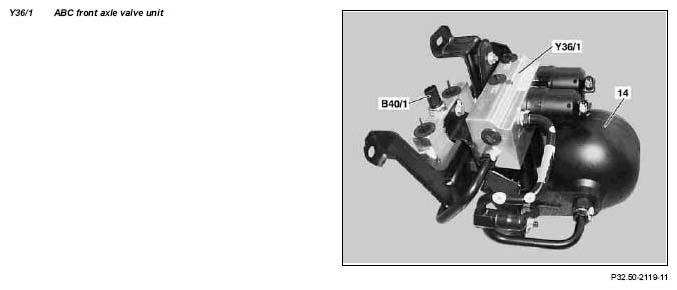

| Valve unit, location | Models 215, 220 | GF32.50-P-4200-01SC | |
| Model 230 | GF32.50-P-4200-01SL | ||
| Valve unit, task | The valve unit consists of 2 control and shutoff valves. The control valves control the oil flow to and from the spring struts. The shut-off valves prevent the vehicle from lowering when switched off, and switch the system into passive mode in the event of faults. | ||
| Valve unit, design | GF32.50-P-4200-02A | ||
| Valve unit, function | GF32.50-P-4200-03A | ||
| Spring strut, location/task/design/function | GF32.25-P-1000B |
