Drain/fill in coolant - AR20.00-P-1142PV

ENGINE 112.912 in MODELS 203.061 /261, 209.361 /461

ENGINE 112.955 in MODELS 209.365 /465

ENGINE 112.961 in MODELS 203.065 /265

ENGINE 113.968 in MODELS 209.375 /475

ENGINE 113.987 in MODELS 209.376 /476

ENGINE 112.946 in MODELS 203.064 /264 /764

ENGINE 112.916 in MODELS 203.081 /281

ENGINE 112.953 in MODELS 203.084 /284

ENGINE 113.988 in MODELS 203.076 /276

ENGINE 113.989 in MODEL 171.473

14.10.04

Fill coolant using vacuum method added

Step 12

	Drain
	Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
1	Open engine hood	Model 171	AR88.40-P-1000V
		Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
2.1	Disconnect battery ground cable	Only when draining coolant at crankcase, right.
		Do not connect quiescent current retention device.
		Model 171	AR54.10-P-0003V
		Model 203	AR54.10-P-0003P
		Model 209	AR54.10-P-0003Q

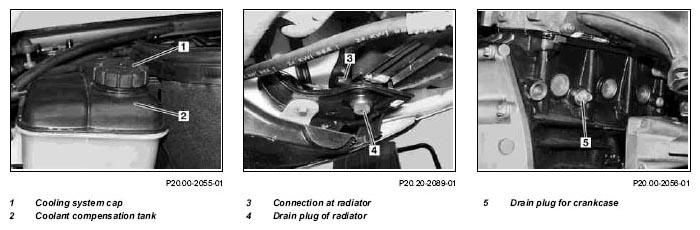

3	Open cooling system cap (1) at coolant expansion reservoir (2)	Turn cooling system cap(1) 1/2 one revolution anti-clockwise, release pressure, then unscrew cooling system cap (1).
4	Remove lower engine compartment paneling	Model 171	AR61.20-P-1105V
		Models 203, 209	AR61.20-P-1105P
	Drain coolant from radiator
5	Slide collector siphon hose onto fitting at radiator (3).
6	Open the radiator drain plug (4) and drain the coolant	Catch coolant with suitable vessel.
7	Tighten radiator drain plug (4) and detach collector siphon hose from fitting at radiator (3).
	Drain coolant at crankcase
8	Loosen crankcase drain plug (5) and push collector siphon hose onto crankcase drain plug (5).
9	Open the crankcase screw plug (5) and drain the coolant	Catch coolant with suitable vessel.
10	Pull collector siphon hose off crankcase drain plug (5) and tighten crankcase drain plug (5).		*BA20.00-P-1001-02B
11	Lower vehicle
	Filling
12	Pour in coolant and bleed cooling system	Reuse the clean coolant.	AR20.00-P-1142-04A
			Figure
			Figure
	Coolant specifications	Sheet 310.1	BB00.40-P-0310-01A
	Anticorrosion/antifreeze agents (Sheet 325.0)	Sheet 325.0	BB00.40-P-0325-00A
			*BF20.00-P-1001-02K
	Notes on coolant level		AH20.00-P-1142-01P
13	Inspect cooling system for leaks		AR20.00-P-1010P
14	Install lower engine compartment paneling	Model 171	AR61.20-P-1105V
		Models 203, 209	AR61.20-P-1105P
15.1	Connect ground cable to battery	Only when the coolant has been drained at the crankcase, right.
		Model 171	AR54.10-P-0003V
		Model 203	AR54.10-P-0003P
		Model 209	AR54.10-P-0003Q
16	Close engine hood	Model 171	AR88.40-P-1000V
		Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q

Number	Designation		Engines 112, 113.940/941/ 942/943/944/ 945/946/948/ 960/961/963/ 964/965/966/ 967/968/971/ 980/981/984/ 986/987/988/ 990/991/992/ 995	Engine 113.989
BA20.00-P-1001-02B	Coolant drain plug to crankcase	Nm	12	12

Number	Designation			Engine 112.912/946 in model 203	Engine 112.912/946/955 in model 209	Engine 113.968 in model 209, 211 engine 113.969 in model 211
BF20.00-P-1001-02K	Cooling system	Total filling capacity	Liters	≈ 10.5	≈ 10.5	≈ 11.5
		Capacity of anticorrosion/antifreeze agent down to -37°C	Liters	≈ 5.25	≈ 5.25	≈ 5.75
		Filling capacity of anticorrosion/antifreeze down to -45°C	Liters	≈ 5.75	≈ 5.75	≈ 6.25
		Specifications for Operating Fluids	Sheet	BB00.40-P-0310-01A	BB00.40-P-0310-01A	BB00.40-P-0310-01A
			Sheet	BB00.40-P-0325-00A	BB00.40-P-0325-00A	BB00.40-P-0325-00A

Number	Designation			Engine 112.916/953	Engine 112.961 in Model 203.065/265 AMG	Engine 113.987/988
BF20.00-P-1001-02K	Cooling system	Total filling capacity	Liters	≈ 10.0	≈ 10.5	≈ 11.5
		Capacity of anticorrosion/antifreeze agent down to -37°C	Liters	≈ 5.0	-	≈ 5.8
		Filling capacity of anticorrosion/antifreeze down to -45°C	Liters	≈ 5.5	-	≈ 6.3
		Specifications for Operating Fluids	Sheet	BB00.40-P-0310-01A	-	BB00.40-P-0310-01A
			Sheet	BB00.40-P-0325-00A	-	BB00.40-P-0325-00A

Number	Designation			Engine 113.989 in model 171
BF20.00-P-1001-02K	Cooling system	Total filling capacity	Liters	≈ 11.5
		Capacity of anticorrosion/antifreeze agent down to -37°C	Liters	≈ 5.55
		Filling capacity of anticorrosion/antifreeze down to -45°C	Liters	≈ 6.1
		Specifications for Operating Fluids	Sheet	BB00.40-P-0310-01A
			Sheet	BB00.40-P-0325-00A
