Drain/fill with coolant - AR20.00-P-1142PR
ENGINE 111, 271 in MODEL 203
ENGINE 271 in MODEL 209
MODIFICATION NOTES
| 10.3.05 |
Cooling system |
Engine 271 |
*BF20.00-P-1001-02P |
| |
Draining |
|
|
 |
Risk of injury
to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning
from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage bottles.
Wear protective gloves, protective clothing and eye protection. |
AS20.00-Z-0001-01A |
 |
Notes on coolant |
|
AH20.00-N-2080-01A |
| 1 |

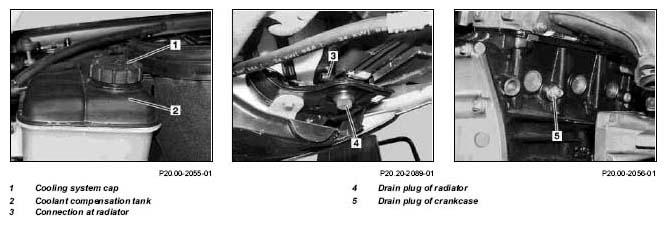

Open cooling system cap (1) at coolant expansion reservoir (2) |
Screw on cooling system cap (1) 1/2 one revolution in an anticlockwise direction, release pressure relief, then unscrew cooling system cap (1). |
|
| 2 |
Remove lower engine compartment paneling |
|
AR61.20-P-1105P |
| |
Drain coolant from radiator |
|
|
| 3 |
Slide collector siphon hose onto fitting at radiator (3). |
|
|
| 4 |
Open the radiator drain plug (4) and drain the coolant |
Catch coolant with suitable vessel. |
|
| 5 |
Tighten radiator drain plug (4) and detach collector siphon hose from fitting at radiator (3). |
|
|
| |
Drain coolant at crankcase |
|
|
| 6 |
Loosen crankcase drain plug (5) and push collector siphon hose onto crankcase drain plug (5). |
|
|
| 7 |
Open the crankcase drain plug (5) and drain the coolant |
Catch coolant with suitable vessel. |
|
| 8 |
Pull collector siphon hose off crankcase drain plug (5) and tighten crankcase drain plug (5). |
Engine 111 |
*BA20.00-P-1001-02B |
| |
|
engine 271 |
*BA20.00-P-1001-02C |
| 9 |
Lower vehicle |
|
|
| |
Filling |
|
|
| 10 |
Pour in coolant and bleed cooling system |
Reuse the clean coolant. |
AR20.00-P-1142-04A |
| |
|
 |
Figure |
| |
|
|
Figure |
 |
Coolant specifications |
Sheet 310.1 |
BB00.40-P-0310-01A |
|
Anticorrosion/antifreeze agents (Sheet 325.0) |
Sheet 325.0 |
BB00.40-P-0325-00A |
| |
|
Engine 111 |
*BF20.00-P-1001-02F |
| |
|
Engine 271 |
*BF20.00-P-1001-02P |
|
Notes on coolant level |
|
AH20.00-P-1142-01P |
| 11 |
Inspect cooling system for leaks |
|
AR20.00-P-1010P |
| 12 |
Install bottom engine compartment panel |
|
AR61.20-P-1105P |
ENGINE COOLING, GENERAL
| Number |
Designation |
Engine 111.951/955/981 |
| BA20.00-P-1001-02B |
Coolant drain plug to crankcase |
Nm |
40 |
ENGINE COOLING, GENERAL
| Number |
Designation |
Engine 271 |
| BA20.00-P-1001-02C |
Coolant drain plug to crankcase |
Nm |
12 |
COOLING SYSTEM
| Number |
Designation |
Engine 111.951/955/981 in Model 203 |
| BF20.00-P-1001-02F |
Cooling system |
Total capacity |
without AC |
Liters |
≈ 8,5 |
| with AC |
Liters |
≈ 8,5 |
| Filling capacity of anticorrosion/ antifreeze down to -37°C |
without AC |
Liters |
≈ 4,25 |
| with AC |
Liters |
≈ 4,25 |
| Filling capacity of anticorrosion/ antifreeze down to -45°C |
without AC |
Liters |
≈ 4,75 |
| with AC |
Liters |
≈ 4,75 |
| Specifications for Operating Fluids |
|
Sheet |
BB00.40-P-0310-01A |
| |
Sheet |
BB00.40-P-0325-00A |
COOLING SYSTEM
| Number |
Designation |
Engine 271 |
| BF20.00-P-1001-02P |
Cooling system |
Total filling capacity (initial filling capacity) |
Liters |
≈ 8 |
| Total filling capacity (workshop change quantity) |
Liters |
≈ 5,6 |
| Filling capacity of anticorrosion/antifreeze down to -37°C |
Liters |
≈ 2,8 |
| Filling capacity of anticorrosion/antifreeze down to -45°C |
Liters |
≈ 3,3 |
| Specifications for Operating Fluids |
Sheet |
BB00.40-P-0310-01A |
| Sheet |
BB00.40-P-0325-00A |
