Sliding/pop-up roof, location/purpose/design/function - GF77.20-P-4100PP
MODEL 203.0 /2 with CODE (414a) Electric glass sliding/pop-up roof

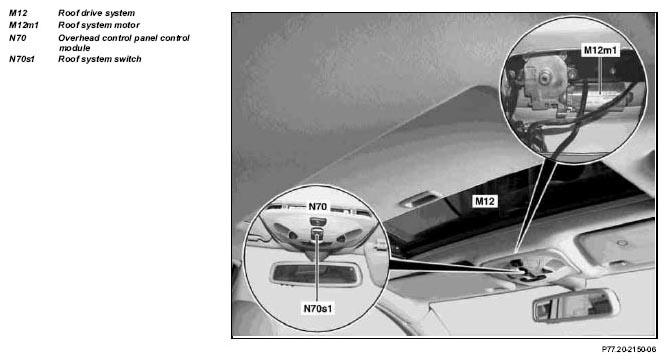

| Sliding/pop-up roof, location | The roof system drive unit (M12) with roof system motor (M12m1) is located in the overhead control panel control module (N70) below the paneling on the front roof frame. | ||
| Sliding/pop-up roof, purpose | "Opening" and "Closing" the combination sliding/pop-up roof. | ||
| Sliding/pop-up roof, design | up to 30.6.02 | GF77.20-P-4100-03PP | |
| as of 1.7.02 | GF77.20-P-4100-03PPP | ||
| Sliding/pop-up roof, function | GF77.20-P-4100-02PP |
