Removing and installing load compartment floor cover guide rail - AR68.30-P-1100PA

MODEL 203.2

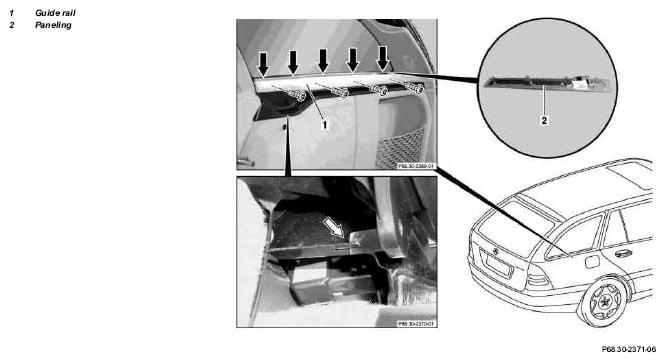

Fig 1: Identifying Load Compartment Floor Cover Guide Rail Remove/Install Components

	Removal, installation
	Protect removed parts against contamination
1	Remove rear passenger compartment side trim panel		AR68.30-P-4780PA
2	Remove D-pillar paneling		AR68.30-P-4495PA
3	Unscrew bolts
4	Loosen guide rail (1) and remove upward	Installation:  Ensure that sheet metal clips catch correctly (arrows) Move lug of guide rail into groove (arrow).
			Figure
5	Unclip paneling (2) and remove	Installation:  Ensure that actuation button in opening mechanism is seated properly in guide rail (1).
6	Install in the reverse order
7	Check stowage compartment flap for proper function.

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
