Remove/install paneling on D-pillar - AR68.30-P-4495PA

MODEL 203.2

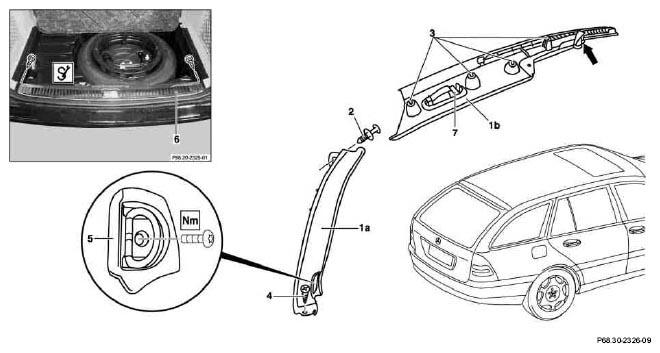

Fig 1: Identifying Paneling On D-Pillar Remove/Install Components - Model 203.2

	Remove/install
	Protect removed parts against contamination
	Note on function reliability of windowbag		AH91.60-P-0693-01A
1	Remove rear floor covering in load compartment	See: ↓
		Remove/install floor covering in load compartment	AR68.20-P-4810PB
2	Open stowage compartment flap and remove
3	Remove load retainers (5)		*BA68.50-P-1002-02A
4	Remove trunk sill (6) cover	Long wedge Move long wedge as close as possible to clips for pressing out cover	Figure
5	Remove roof frame paneling		AR68.30-P-4470PA
6	Loosen bottom paneling from D-pillar (1a) and remove	Remove door seal from fold in area of paneling (1a, 1b)
7	Unclip upper paneling from D-pillar (1b) and remove	Long wedge Do not damage catch lug (arrow) during removal. Move long wedge as close as possible to clips for pressing out paneling	Figure
8	Disconnect electric connector for interior lamp from D-pillar (7)
9	Install in the reverse order

LUGGAGE NETS

Number	Designation		Model 203.2
BA68.50-P-1002-02A	Screw for load retainer mount on D-pillar	Nm	20

Fig 2: Identifying Long Wedge (115 589 03 59 00)
