Remove/install paneling on C-pillar - AR68.30-P-4490PA

MODEL 203.2

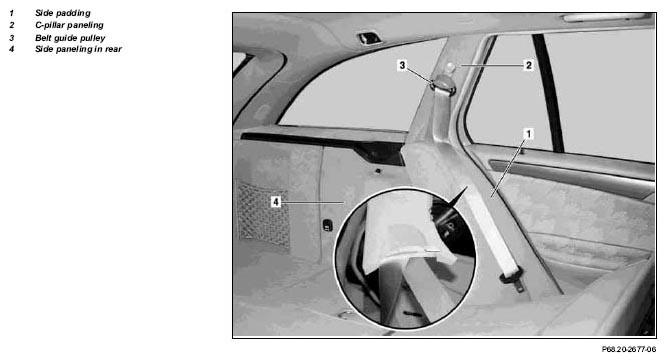

Fig 1: Identifying Paneling On C-Pillar Remove/Install Components - Model 203.2

	Remove, Install
1	Release rear seat backrest and fold forward
2	Remove side padding (1)		AR91.12-P-1710P
3	Remove edge guard in area of C-pillar paneling (2)
4	Remove belt guide pulley (3)	Lay belt guide pulley down to side.
			*BA91.40-P-1005-01A
5	Remove rear side paneling (4)
6	Unclip C-pillar paneling (2) and remove	Installation:  Observe installation position of seat belt. Protect removed parts against contamination.
7	Remove seat belt out of belt guide
8	Install in the reverse order

SEAT BELTS/BELT TENSIONERS

Number	Designation		Model 203
BA91.40-P-1005-01A	Screw on rear upper belt guide fitting	NM	30
