Interior motion sensor transmitter and receiver, location/task/design/function - GF80.50-P-4104PP
MODEL 203.0 /2 with CODE (551a) Anti-theft alarm system (ATA) with CODE (882b) Interior motion sensor (only with anti-theft alarm system)
Shown on model 203.0

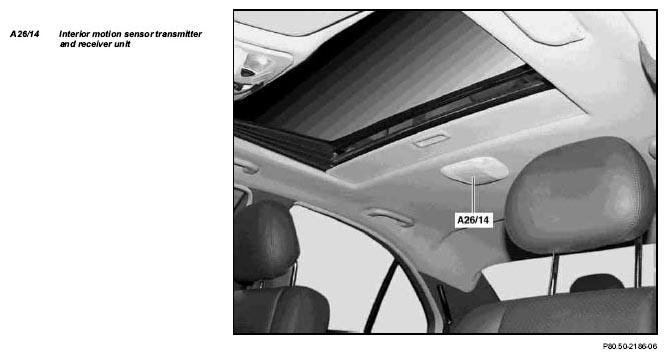

| Interior protection system transmitter and receiver, location | The interior motion sensor transmitter and receiver (A26/14) is located in the center of the headliner | ||
| Interior motion sensor transmitter and receiver, task | The interior motion sensor transmitter and receiver (A26/14) operates as motion sensor and detects movements in the passenger compartment. | ||
| Interior motion sensor transmitter and receiver, design | The interior motion sensor transmitter and receiver (A26/14) contains an ultrasonic sensor and receiver as well as a microcontroller with data interface. | ||
| Interior motion sensor transmitter and receiver, function | GF80.50-P-4104-02PP |
