Remove/install loudspeaker amplifier control unit - AR82.62-P-7720PB

MODEL 203.7 with CODE (810) Sound system

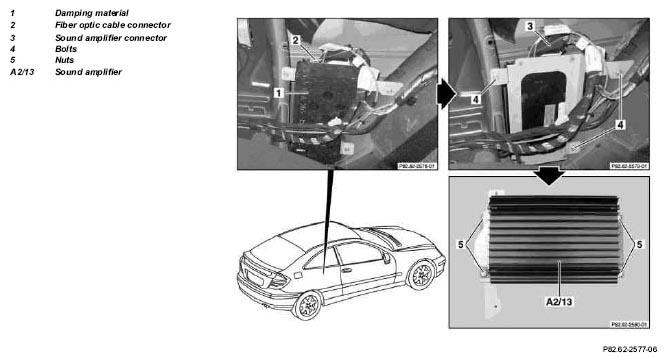

Fig 1: Identifying Loudspeaker Amplifier Control Unit Remove/Install Components - Model 203.7

MODIFICATION NOTES

24.5.06

"Disconnect/connect ground line on battery" removed

	Remove/install
1	Remove rear passenger compartment side trim panel		AR68.30-P-4780PB
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
2	Separate fiber optic cable connector (2)	Do not buckle or stretch D2B fiber optic cable, since this may prevent it from working. Install caps on fiber optic cable connector and equipment connector. Refer to: ↓
		Cover fiber optic cable	AR82.95-P-0005-01A
	Notes on fiber optic cable		AH82.70-P-0001-02A
3	Pull attenuator (1) up and out
4	Separate sound amplifier connector (3)
5	Remove bolts (4)
6	Remove sound amplifier (A2/13) and mounting frame
7	Unscrew nuts (5).
8	Detach sound amplifier (A2/13) from mounting frame
9	Install in the reverse order
