Remove/install xenon headlamp control unit - AR82.10-P-4632P

MODEL 203 with CODE (614) Bi-xenon headlamp unit

Illustrated on model 203.0 bi-xenon headlamp unit, code 614 on right side of vehicle, lamp unit built-in

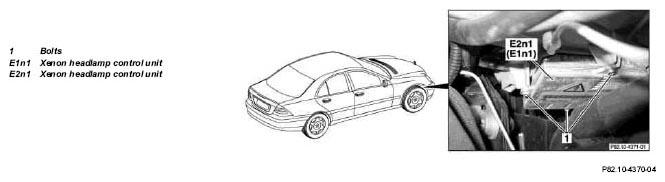

Fig 1: Identifying Xenon Headlamp Control Unit Remove/Install Components - Illustrated On Model 203.0 Bi-Xenon Headlamp Unit, Code 614 On Right Side Of Vehicle, Lamp Unit Built-In

	Remove/install
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard  through highly flammable material in the area of damaged xenon bulbs. Risk of injury  through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst. Risk of poisoning  through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds.	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated.	AS82.10-Z-0001-01A
1.1	Remove left front headlamp unit	Only if left xenon headlamp control unit (E1n1) is removed.	AR82.10-P-4730PA
1.2	Remove front fender liner in front fender	Only if right xenon headlamp control unit (E2n1) is removed, right front lamp unit installed.	AR88.10-P-1300P
2	Remove bolts (1)
3	Carefully pry off xenon headlamp control unit (E2n1) or xenon headlamp control unit (E1n1) from the right or left front lamp unit	Long wedge	Fig 2
4	Install in the reverse order
5.1	Adapter of the xenon headlamp control unit (E2n1) or the xenon headlamp control unit (E1n1)	When replacing the xenon headlamp control unit (E2n1) or the xenon headlamp control unit (E1n1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A
6	Check headlamp setting and correct if necessary
	Check and correct headlamp adjustment		AP82.10-P-8260P

Fig 2: Identifying Long Wedge (115 589 03 59 00)
