Remove/install tailgate spray nozzle - AR82.35-P-6920PA

MODEL 203.2

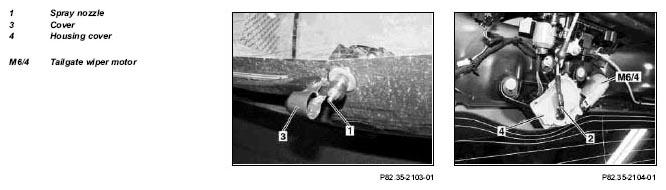

Fig 1: Identifying Tailgate Spray Nozzle Remove/Install Components - Model 203.2

MODIFICATION NOTES

25.10.04

The spray nozzle (1) and the connection piece are integrated in the rear-end door wiper motor (M6/4) as a non-separable unit and can thus not be replaced separately.

AS3

	Remove/Install
1	Withdraw ignition key
2	Remove liner on tailgate		AR68.30-P-1050PA
3	Remove rear-end door wiper motor (M6/4)	The spray nozzle (1) and the connector are integrated in the rear-end door wiper motor (M6/4) as a non-separable unit and can therefore not be replaced separately. If the spray nozzle (1) is defective, the rear-end door wiper motor (M6/4) must be replaced to rectify the fault.	AR82.30-P-6900PA
4	Install in the reverse order
5	Check the windshield washer system fluid level
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210P
6	Windshield wiper, windshield washing system function check
