Remove/install headlamp cleaning system pump - AR82.35-P-6003P

MODEL 203, 209 with CODE (600) Headlamp cleaning system

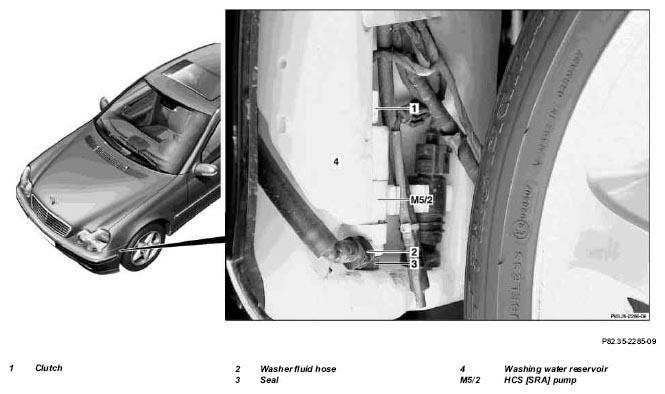

Fig 1: Identifying Headlamp Cleaning System Pump Remove/Install Components - Illustrated On Model 203.0

Illustrated on Model 203.0

MODIFICATION NOTES

2.2.06

Disconnect/connect ground line removed

Step 1

	Remove/install
1	Remove front left fender liner from the front fender	Wheel does not need to be removed.	AR88.10-P-1300P
2	Disconnect connector (1)
3	Detach washer fluid hose (2) from the HCS [SRA] pump (M5/2) and plug	Collect escaping washer fluid with a suitable reservoir.
4	Remove HCS [SRA] pump (M5/2) up out of the washer fluid reservoir (4)	Mounting wedge	Figure
5	Install in the reverse order
6	Correct fluid level of windshield washer system
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210P

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
