Remove/install handset on center console - AR82.70-P-8916P

MODEL 203.0 /2 /7 with CODE (853) MB standard cellular telephone except CODE (352a) COMAND operating and display system

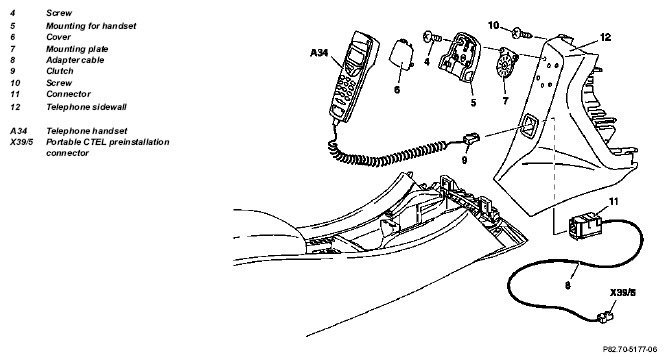

Fig 1: Identifying Handset On Center Console Remove/Install Components - Model 203.0 /2 /7 With Codes (853) And (352a)

	Remove/Install
1	Remove telephone handset (A34) out of mounting for handset (5)	To do this, press release buttons on the mounting for handset (5) on both sides.
2	Unclip connector (9)	Release connector (9).
3	Remove cover from center console		AR68.20-P-2350P
4	Remove glove compartment		AR68.10-P-1400P
5	Remove screw (10)	Quantity and position differ depending on vehicle equipment.
6	Remove telephone sidewall (12)	Unclip telephone sidewall (12) on the side of the glove box and pull out.
7	Disconnect portable CTEL preinstallation connector (X39/5)	Portable CTEL preinstallation connector (X39/5) is located in the center console in the area of the heater or AC control panel.
8	Disconnect antenna connection	Antenna connection is located in the center console in the area of the heater or AC control panel.
9	Unclip cover (6)
10	Remove bolts (4).
11	Remove mounting for handset (5)	Remove with mounting plate (7).
12	Unclip connector (11)	Unlock plug (11). Unclip at telephone sidewall (12).
13	Remove adapter cable (8)
14	Install in the reverse order
