Remove, install lens of fog light - AR82.10-P-1821P

MODEL 203

Shown on model 203.0

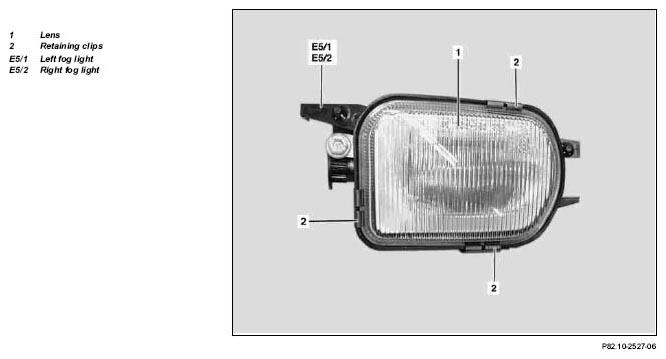

Fig 1: Identifying Lens Of Fog Light Remove/Install Components - Shown On Model 203.0

	Removal, installation
1	Remove left fog light (E5/1, E5/2) /right		AR82.10-P-5103P
2	Remove retaining clips (2)
3	Take off lens (1)	Installation:  Before fitting on lens, inspect seal for damage
4	Install in the reverse order
