Remove/install windshield washer nozzle - AR82.35-P-6970P

MODELS 203, 209

Shown on model 203.0 with code (875), heated windshield washer system

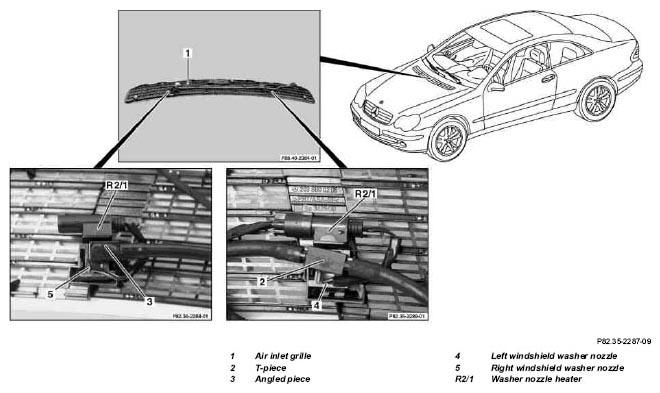

Fig 1: Identifying Windshield Washer Nozzle Remove/Install Components - Shown On Model 203.0 With Code (875)

	Remove/Install
	Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Remove air inlet grate (1)	Avoid damage to the paintwork on the engine hood and the air inlet grate (1) by using a suitable base.
		Model 203	AR88.40-P-3001P
		Model 209	AR88.40-P-3001Q
2	Unclip T-piece (2), angle piece (3)	Risk of breakage!
3	Unclip left (4) and right (5) windshield washer nozzle
4.1	Detach coupling for washer nozzle heater (R2/1)	For heated windshield washer system, code 875 Left and right side
5	Install in the reverse order
6	Carry out function check of the windshield wipers and the windshield washer system
	Check windshield washer system fluid level and correct if necessary		AP82.35-P-8210P
