Remove/install air intake grille on engine hood - AR88.40-P-3001P
MODEL 203
| Remove/Install | |||
|---|---|---|---|
| Risk of injury to fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/tailgate or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.40-P-1000P | |

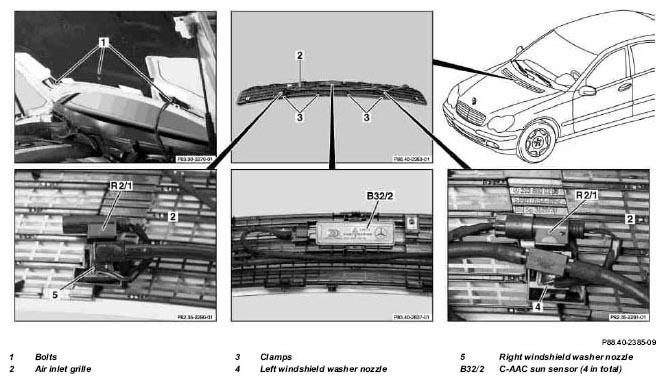

| 2 | Remove bolts (1) | ||
| 3 | Open tie strap | ||
| 4 | Close engine hood | AR88.40-P-1000P | |
| 5 | Lightly lift air inlet grate (2) and unlock clamps (3) | ||
| 6 | Remove air inlet grate (2), turn and lay down on suitable subsurface | ||
| 7 | Unclip left windshield washer nozzle (4) and right windshield washer nozzle (5) | ||
| 8.1 | Unclip C-AAC sun sensor (4 in total) (B32/2) | With comfort automatic air conditioning, code 581b. | |
| 9 | Expose lines, hoses and remove air inlet grate (2) | ||
| 10 | Install in the reverse order | ||
| 11 | Perform a function test | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210P |
