Removing and installing wiper motor - AR82.30-P-6800P
MODELS 203, 209

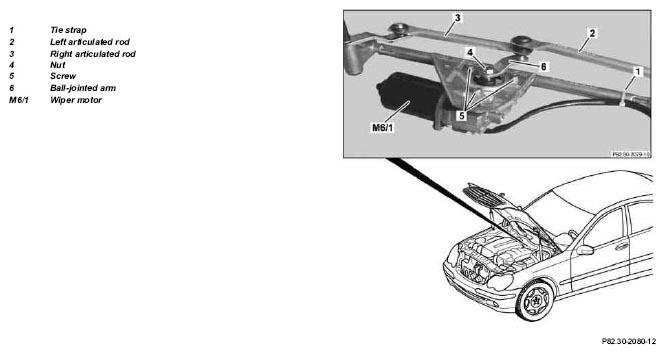

Shown in model 203.0
| Remove/Install | |||
|---|---|---|---|
| Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Remove wiper system | AR82.30-P-6400P | |
| 2 | Cut through cable straps (1) | ||
| 3 | Pry off right articulated rod (2) from ball-jointed arm (6) and remove | ||
| 4 | Pry off left articulated rod (3) from ball-jointed arm (6) and remove | ||
| 5 | Unscrew bolts (5). | *BA82.30-P-1001-01A | |
| 6 | Remove wiper motor (M6/1) from linkage | ||
| 7 | Install in the reverse order |
| Number | Designation | Model 203 | Model 209 | |
|---|---|---|---|---|
| BA82.30-P-1001-01A | Bolt to wiper motor fixing. | Nm | 13 | 9 |
