Check wiper arms and adjust - AR82.30-P-6000Q

MODELS 203 as of 1.6.03, 209

Shown on model 203, wiper system in reverse position

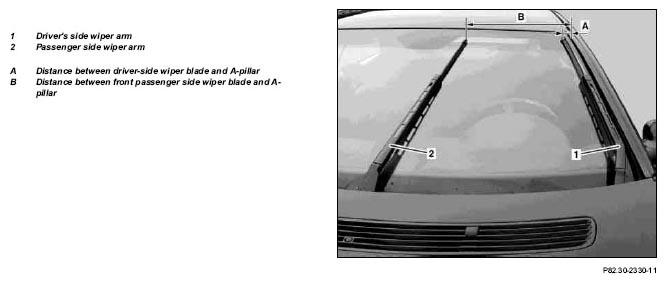

Fig 1: Identifying Wiper System In Reverse Position - Shown On Model 203

	Check
	Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	When working on raised driver-side wiper arm (1) or front passenger side wiper arm (2) it has to be observed that they do not fall onto the windshield to prevent it from being damaged.
1	Move wiper system from parked position	To do this, turn on ignition (circuit 15 or circuit 15R) and turn wiper switch to position "Two". After the wiper system has left the parked position, turn off ignition and turn back wiper switch to position "Zero".
2	Manually position wiper system into reverse position	Distance between driver-side wiper blade and A-pillar (A) approx. 35 mm, distance between front passenger side wiper blade and A-pillar (B) approx. 350 mm.
		For left-hand drive vehicles, measured from the upper wiper blade end of the driver-side wiper blade (1) and the front passenger side wiper blade (2) to the inside of the left A-pillar. For right-hand drive vehicles, measured from the upper wiper blade end of the driver-side wiper blade (1) and the front passenger side wiper blade (2) to the inside of the right A-pillar.
3	Remove wiper blades	See Operating Instructions
4	Clean wiper blade mounts on driver-side wiper arm (1) and front passenger side wiper arm (2)
5	Measure angle of incidence of driver-side wiper blade (1) and front passenger side wiper blade (2) to windshield and record	When changing from reverse position to parked position it has to be observed that the driver-side wiper arm (1) and the front passenger side wiper arm (2) do not have any direct contact to the windshield to prevent it from being scratched.	AR82.30-P-6000-01Q
		Cover driver-side wiper arm (1) and front passenger side wiper arm (2) with appropriate means.
			Figure
6	Compare test values with adjustment values and select correct adjustment measure	The specified adjustment values are only valid for left-hand drive vehicles. For right-hand drive vehicles, the particular sign has to be changed.
		Angle of incidence of wiper arm on driver-side (1) in reverse position	*BE82.30-P-1001-01E
		Angle of incidence of wiper arm on front passenger side (2) in reverse position	*BE82.30-P-1002-01E
		Angle of incidence of wiper arm on driver-side (1) in parked position	*BE82.30-P-1003-01E
		Angle of incidence of wiper arm on front passenger side (2) in parked position	*BE82.30-P-1004-01E
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
7.1	Adjust angle of incidence of driver-side wiper arm (1) or front passenger side wiper arm (2) in parked position	In the event that the test values deviate from the tolerance range in reverse position or in parked position and reverse position:	AR82.30-P-6100-01Q
		Distort driver-side wiper arm (1) or front passenger side wiper arm (2) by at least the value of the tolerance deviation in reverse position.
		The specified adjustment values are only valid for left-hand drive vehicles. For right-hand drive vehicle, the particular sign has to be changed.
		Angle of incidence of wiper arm on driver-side (1) in parked position	*BE82.30-P-1003-01E
		Angle of incidence of wiper arm on front passenger side (2) in parked position	*BE82.30-P-1004-01E
			Figure
7.2	Adjusting wiper system	In the event that the test values of the driver-side wiper arm (1) and front passenger side wiper arm (2) deviate from the tolerance range in parked position.	AR82.30-P-6400-01P
		The specified adjustment values are only valid for left-hand drive vehicles. For right-hand drive vehicles, the particular sign has to be changed.
		Angle of incidence of wiper arm on driver-side (1) in parked position	*BE82.30-P-1003-01E
			*BA82.30-P-1007-01A
			Figure
			Figure
8	Install wiper blades	See Operating Instructions
9	Perform wiper system function check

WINDSHIELD WIPER

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Fig 3: Identifying Adjustment Tool Set (211 589 02 21 00)
