Retrofit illuminated entrance trim panel - AZ82.20-P-0001P
MODEL 203.0 /2

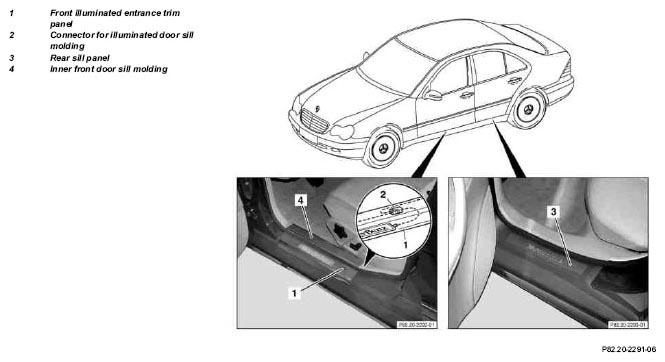

Fig 1: Identifying Front Illuminated Entrance Trim Panel And Inner Front Door Sill Molding - Model 203.0 /2
| Remove | |||
| Risk of death. Death may result if contact is made with parts carrying high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out any work on such components. | AS00.00-Z-0020-01A | |
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, naked flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 |
Disconnect ground cable of battery | AR54.10-P-0003P | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3.1 | Remove paneling in trunk | ||
| AR68.30-P-4600P | |||
| 3.2 | Remove covering from first aid kit | ||
| 4 | Remove rear SAM control unit with fuse and relay module | ||
| 5 | Remove side cushion on left rear seat backrest | ||
| AR91.12-P-1710P | |||
| 6 | Fold left and right rear seat cushion up | ||
| 7 | Remove right and left inner rear door sill moldings | ||
| 8 | Remove inner and outer left and right front sill moldings | ||
| 9 | Remove right front and left rubber door seal in area of B-pillar | ||
| 10 | Loosen B-pillar paneling on right and left front door | ||
| Install | |||
| 11 | Retrofit illuminated door sill molding (1) | AZ82.20-P-0001-01P | |
| 12 | Route cable harness for illuminated entrance trim panel | AZ82.20-P-0001-02P | |
| 13 | Check for proper function | ||
| 14 | Glue rear door sill molding (3) into recess of standard door sill molding. | ||
| 15 | Fit remaining parts to vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 689 00 57 | Illuminated entrance trim panels with cable harness | 1 |
| B6 689 00 16 | Lighting film, blue | 1 |
| B6 689 00 17 | Lighting film, green | 1 |
| B6 689 00 18 | Yellow luminous foil | 1 |
| A210 545 40 28 | Housing 1-pin | 1 |
| A003 545 51 26 | Contact spring | 1 |
