Removing and installing windshield washer hose - AR82.35-P-6980P

MODEL 203

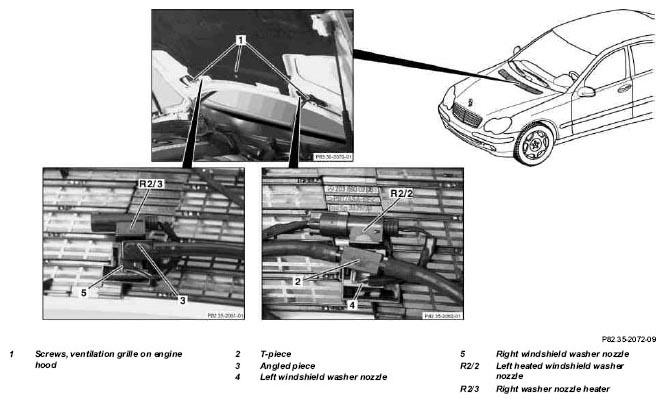

Fig 1: Identifying Windshield Washer Hose Remove/Install Components - Model 203 (1 Of 2)

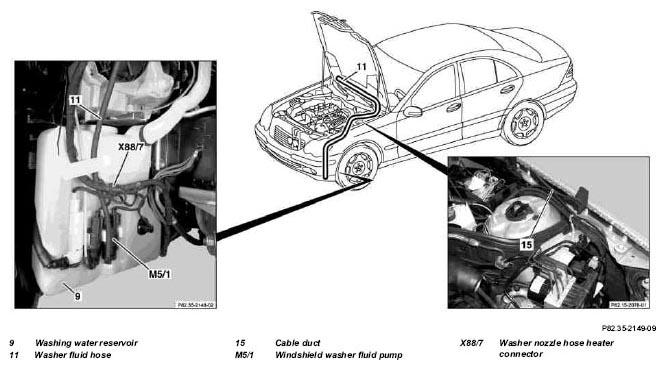

Fig 2: Identifying Windshield Washer Hose Remove/Install Components - Model 203 (2 Of 2)

	Removing, installing
	Injury Hazard!  Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Open engine hood
2	Remove fender liner from front fender	Front inner fender	AR88.10-P-1300P
3	Disconnect heated washer nozzle hose connector (X88/7)	Code (875) heated windshield washer
4	Remove windshield washer hose (11)	Risk of breakage. Hose on windshield washer fluid pump (M5/1). Close pump.
		Set of plugs	Figure
5	Unscrew screws, ventilation grille to engine hood (1)
6	Take off ventilation grille	Avoid damaging paintwork at hood and at ventilation grille.
7	Press T-piece (2) out of left windshield washer nozzle (4)	Risk of breakage.
8	Push elbow (3) out of right windshield washer nozzle (5)	Risk of breakage.
9	Open cable duct (15)
10	Open cable strap.	All cable straps for windshield washer hose to wiring harness.
11	Expose windshield washer hose (11) and remove
12	Install in the reverse order
13	Check fluid level of windshield washer system and correct if necessary
			AP82.35-P-8210P
14	Windshield wiper, windshield washing system function check

Fig 3: Identifying Set Of Plugs (129 589 00 91 00)
