Remove, install screen antenna - AR82.62-P-8103PA
MODEL 203.2

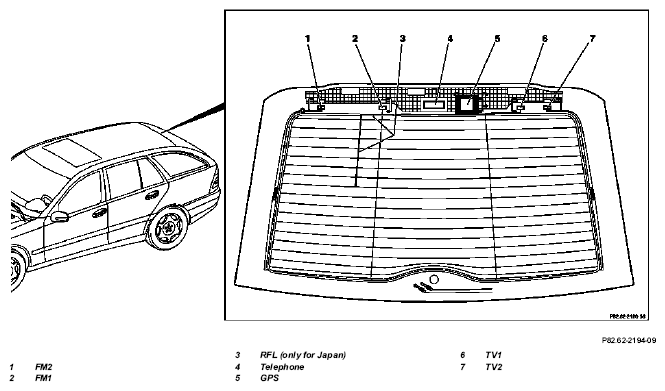

Rear window antenna structure
Left side window antenna structure
Right side window antenna structure
  |
Removing, installing |
|
|
| 1 |
Remove window of rear door |
The FM1, FM2, GPS, TV1, TV2 and RFL antennas are integrated in the rear window only for Japanese version (code 498); if a fault exists in the antenna or antennas, replace the rear window. |
|
| 2 |
Remove left side window |
The AM, FM3 and RFL antennas (not Japanese version, code 498) are integrated in the left side window; if a fault exists in the antenna or antennas, replace the left side window.
Refer to: ↓ |
|
| |
|
Remove, install side window between C and D pillar |
AR67.30-P-2301PA |
| 3 |
Remove right side window |
|
|
| |
|
The TV3 and TV4 antennas are integrated in the right side window; if a fault exists in the antenna or antennas, replace the right side window.
Refer to: ↓ |
|
| |
|
Remove, install side window between C and D pillar |
AR67.30-P-2301PA |
| 4 |
Install in the reverse order |
|
|
