Remove/install rear door power window - AR72.12-P-1810P

MODEL 203.0/ 2

Shown on model 203 without window clamp

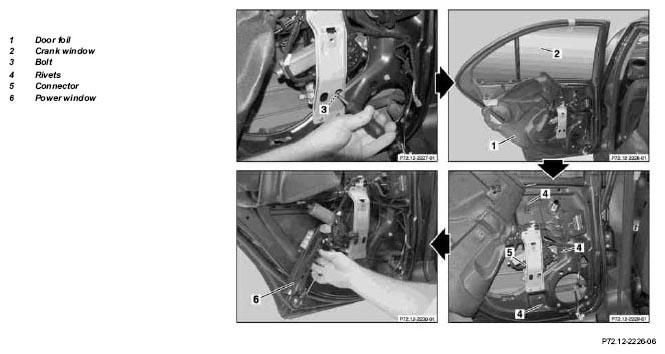

Fig 1: Identifying Rear Door Power Window Remove/Install Components (1 Of 3)

Shown on model 203 without window clamp

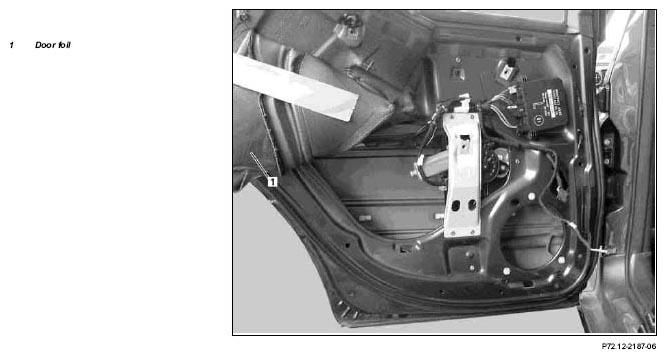

Fig 2: Identifying Rear Door Power Window Remove/Install Components (2 Of 3)

Shown on model 203 without window clamp

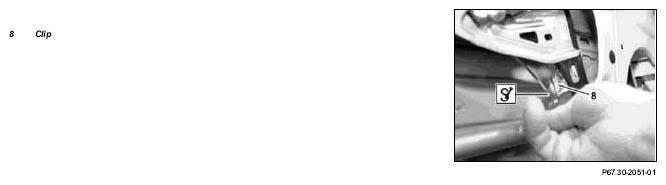

Fig 3: Identifying Rear Door Power Window Remove/Install Components (3 Of 3)

	Remove/Install
	Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Remove door lining		AR72.10-P-1000P
2.1	Remove door foil (1)	Except sidebag in rear, left and right, code 293 Installation: Press on door foil.
		Roller	Figure
2.2	Partially loosen door foil (1), fold up and arrest	With sidebag in rear, left and right, code 293 Carefully remove door foil and check precisely for damage, replace if necessary Installation: Press door foil.
		Roller	Figure
3	Detach crank window (2) from power window		AR72.12-P-1910P
		Bolt, window lift to crank window	*BA72.12-P-1009-01A
		Bolt, window clamp, window to window lifter	*BA72.12-P-1016-01A
4	Move crank window (2) upward	Arrest with adhesive tape or mounting wedge.
		Mounting wedge	Figure
5	Drill out rivets (4) in power window (6)	Three each. Remove rivet residues and chips from door, risk of rust.
6	Disconnect connector (5)
7	Remove power window (6)	Unhook from inner door panel and remove through assembly opening. Installation : Rivet power window (6) flush to inner door panel.
8	Install in the reverse order
9	Adjust crank window (2)		AR72.12-P-1910P
	Check
10.1	Check gap between clip (8) and glass surface of crank window (2)	Model 203 without window clamp	*BE72.12-P-1002-01B
		Feeler gage 0.04 -0.15 mm	*WH58.30-Z-1007-12A
11	Check butyl cord on inner door panel	If necessary, install new butyl cord, insufficient sealing causes leakage
12	Synchronize power window (6)
	Synchronization of power windows, function		GF72.29-P-4003PP
13	Perform function check
