Remove |
|
|
 |
Risk of injury
to fingers being jammed or pinched
when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof. |
When moving components, ensure that no body parts or limbs are within the operating range of moving parts. |
AS00.00-Z-0011-01A |
| 1 |
Remove inner sealing rail |
|
AR72.10-P-1600P |
| 2 |
Remove outer sealing rail |
|
AR72.10-P-1700P |
| 3.1 |
Remove speaker in rear door |
with sound system, code 810 |
AR82.62-P-7874P |
| 4 |

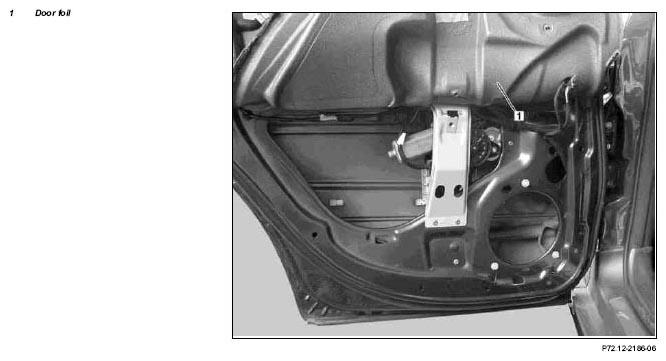

Fold door foil (1) upward and fasten. |
Carefully remove bottom section from door foil (1) and fold upward until assembly opening is accessible. |
|
| 5 |

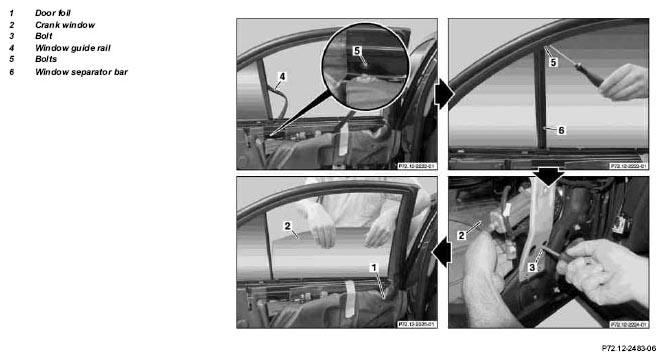

Move crank window (2) to assembly position |
Open crank window (2) until bolts (3) in assembly opening are accessible. |
|
| 6 |
Detach bolt (3) from crank window (2) on power window |
|
|
| 7 |
Remove window guide rail (4) |
|
|
| 8 |
Unscrew bolts (5). |
|
|
| 9 |
Remove window separator bar (6) |
|
|
| 10 |
Remove crank window (2) upward |
|
|
 |
Install |
|
|
| 11 |
Insert crank window (2) into shaft |
|
|
| 12 |
Insert crank window (2) into power window |
|
|
| 13 |
Slightly tighten bolts (3) |
|
|
| 14 |
Install window separator bar (6) and tighten bolts (5) |
|
|
| 15 |
Install window guide rail (4) |
Treat window guide rail (4) with lubricant. |
|
| |
|
Antifriction agent |
*BR00.45-Z-1010-06A |
| 16 |
Roll up crank window (2) |
up to crank window stop (2), align if necessary |
|
| 17 |
Roll down crank window (2) |
to assembly position. |
|
| 18 |
Tighten bolt (3) |
Bolt, window clamp, window to power window |
*BA72.12-P-1016-01A |
 |
Check |
|
|
| 19 |
Check butyl cord on inner door panel |
If necessary, install new butyl cord, insufficient sealing causes leakage |
|
|
Install |
|
|
| 20 |
Install door foil (1) on inner door panel and press on |
Check door foil (1) for damage, replace if necessary |
|
| |
|
Roller |
Figure |
| 21.1 |
Install speaker in rear door |
with sound system, code 810 |
AR82.62-P-7874P |
| 22 |
Install outer sealing rail |
|
AR72.10-P-1700P |
| 23 |
Install inner sealing rail |
|
AR72.10-P-1600P |
| 24 |
Synchronize power window |
|
|
 |
Synchronization of power windows, function |
|
GF72.29-P-4003PP |
| 25 |
Perform function check |
|
|
