Removing and installing inner sealing rail - AR72.10-P-1600P

MODEL 203

Illustrated on driver's door on model 203.0

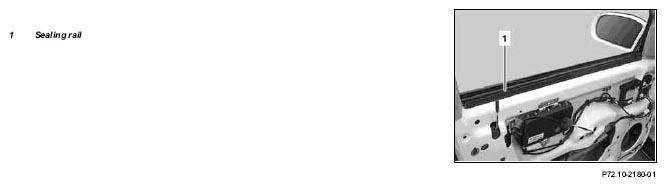

Fig 1: Identifying Inner Sealing Rail

	Removing, installing
1	Remove door liner from front door		AR72.10-P-1000P
2	Remove door liner from rear door	Model 203.0 / 203.2	AR72.12-P-1010P
3	Press sealing rail (1) off of inner door panel with assembly wedge	Assembly wedge	Figure
4	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)
