Fuel filler flap does not open - AF80.20-P-6009P
MODEL 203.0
OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES
| Category | Op. no. | Operation text | Time | Acc. no. | Code |
|---|---|---|---|---|---|
| P | 023752 | Operation: Align locking element E of central locking system | 8 WU/0.7 h | - | - |
| Damage code | Cause | Remedy | |
|---|---|---|---|

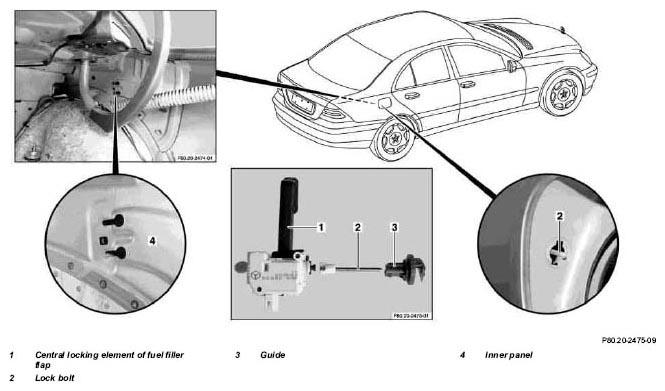

| 80 494 F6 | Locking pin detached from fuel filler flap actuator motor. | 1 Remove central locking element of fuel filler flap (1). | AR80.20-P-2300P |
| 2 Remove locking pin (2). | |||
| 3 Install locking pin (2) at central locking element of fuel filler flap (1). | |||
| 4 Open fuel filler flap. | |||
| 5 Unclip and detach guide (3). | |||
| 6 Insert central locking element of fuel filler flap (1). Locking pin (2) must be positioned at the center of the opening. |
|||
| Hook for aligning inner panel | WF58.50-P-4340-01P | ||
| 7 Remove central locking element of fuel filler flap (1). | |||
| 8 Use hook to pull inner panel (4) toward center of vehicle. | |||
| 9 Insert central locking element of fuel filler flap (1). If the locking pin (2) is still off-center in the opening, repeat steps 7 to 9. |
|||
| 10 Install central locking element of fuel filler flap (1). | AR80.20-P-2300P |
