Remove/install CL element fuel filler flap - AR80.20-P-2300P

MODEL 203

Shown on model 203.0

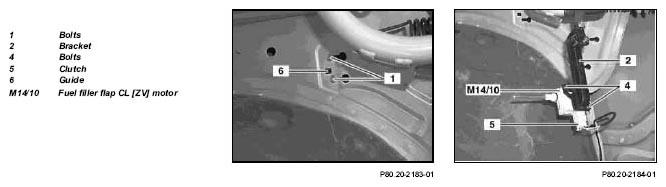

Fig 1: Identifying CL Element Fuel Filler Flap Remove/Install Components

	Remove/Install
1.1	Remove audio power amplifier	Model 203.7 with CODE (810) Sound system	AR82.62-P-7720PB
		Model 203.2 with CODE (810) Sound system	AR82.62-P-7720PA
1.2	Remove trunk lining on right		AR68.30-P-4600P
		Model 203.7 except code (810) Sound system	AR68.30-P-4600PB
1.3	Remove paneling in rear	Remove right side paneling
		Model 203.2 except code (810) Sound system	AR68.30-P-4780PA
2	Loosen bolts (1)
3.1	Remove bracket (2) with fuel filler flap CL [ZV] motor (M14/10)	Models 203.0/2 Installation:  Feel guide duct and insert locking bolt of fuel filler flap CL [ZV] motor (M14/10) into guide duct. Guide (6) on bracket (2) should be visible in body opening.
3.2	Remove fuel filler flap central locking actuating motor (M14/10).	Model 203.7 Installation:  Feel guide duct and insert locking bolt of fuel filler flap CL [ZV] motor (M14/10) into guide duct.
4	Disconnect connector (5)
5.1	Remove bolts (4)	Models 203.0/2
6.1	Remove fuel filler flap CL [ZV] motor (M14/10) from bracket (2)	Models 203.0/2
7	Install in the reverse order
