Remove/install ATA alarm signal siren - AR80.50-P-9840P

MODEL 203.0, 209.3 with CODE (551) Anti-theft alarm system (ATA [EDW])

Illustrated on model 203.0

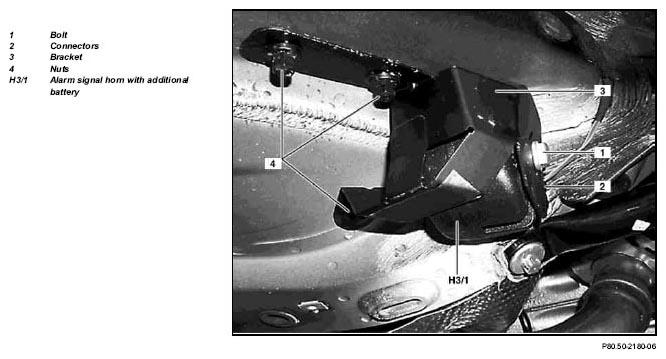

Fig 1: Identifying ATA Alarm Signal Siren Remove/Install Components

	Remove/install
1	Remove inner fender in right front fender	Only dismount rear part.	AR88.10-P-1300P
2	Disconnect connectors (2) from alarm signal horn with additional battery (H3/1)	Before disconnecting the electrical connector ensure, that the anti-theft alarm system (ATA) is deactivated, otherwise the siren is activated (internal voltage supply via battery).
3	Remove nuts (4)
4	Remove alarm signal horn with additional battery (H3/1) with bracket (3)
5	Remove bolt (1)
6	Remove alarm signal horn with additional battery (H3/1) from bracket (3)
7	Install in the reverse order
