Removing and installing Parktronic system (PTS) sensors in rear bumper - AR54.65-P-0002P

MODEL 203 with CODE (220a) Parktronic System (PTS)

Shown on model 203.0

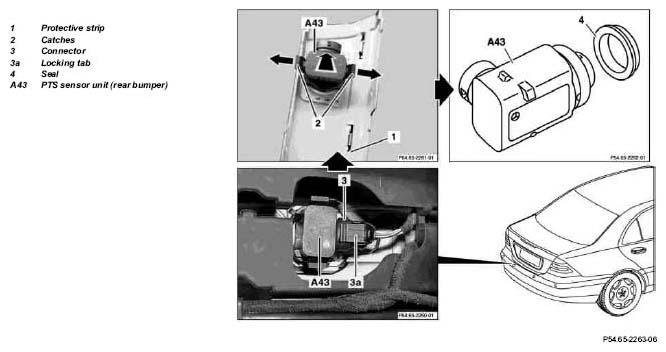

Fig 1: Identifying Parktronic System (PTS) Sensors Remove/Install Components In Rear Bumper - Shown On Model 203.0

	Removal, installation
1	Remove ram strip (1) from rear bumper	Refer to: ↓
		Remove protective strip at front and rear bumpers, install.	AR88.80-P-2220P
2	Unlock connector (3) and disconnect	Gently lift locking tab (3a) using screwdriver.
3	Release locks (2) in direction of arrow		Figure
4	Remove PTS sensor unit (rear bumper) (A43) from bracket	Installation:  Check sealing ring (4) and replace if damaged.
		In direction of arrow.
5	Install in the reverse order

Fig 2: Identifying Unlocking Tool (168 589 02 31 00)
