Removing and installing bumper molding - AR88.80-P-2220P

MODEL 203

front and rear bumper

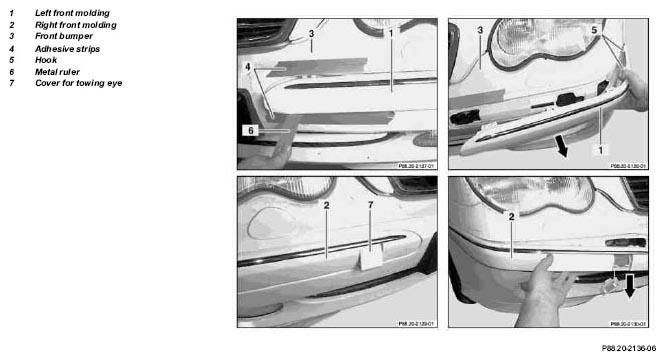

Fig 1: Identifying Bumper Molding Remove/Install Components (1 Of 2)

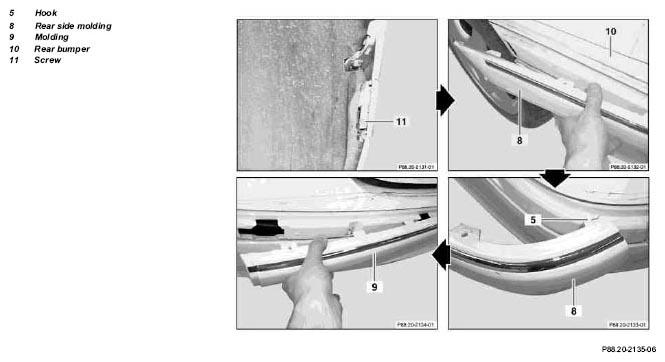

Fig 2: Identifying Bumper Molding Remove/Install Components (2 Of 2)

	Removing
1	Protect paintwork with adhesive strips (4)
2	Unclip left front molding (1) with metal ruler (6)
3	Press cover (7) over towing eye in on marking and open
4	Unclip right front molding (2) through opening toward front
5	Remove molding (1, 2) toward front	Pay attention to hooks (5).
6	Unscrew screw (11) from rear side molding (8)
7	Unclip rear side molding (8) toward outside, remove	Pay attention to hooks (5).
8	Remove molding (9) toward rear
	Installing
9	Remove adhesive tape (4)
10	Move front molding (1, 2) into bumper (3), clip in
11	Clip in guard molding (9)
12	Install rear side molding (8), clip in	Pay attention to hooks (5).
13	Screw in screws (11)
