Removing and installing Parktronic system (PTS) sensors in front bumper - AR54.65-P-0001P
MODEL 203 with CODE (220a) Parktronic System (PTS)

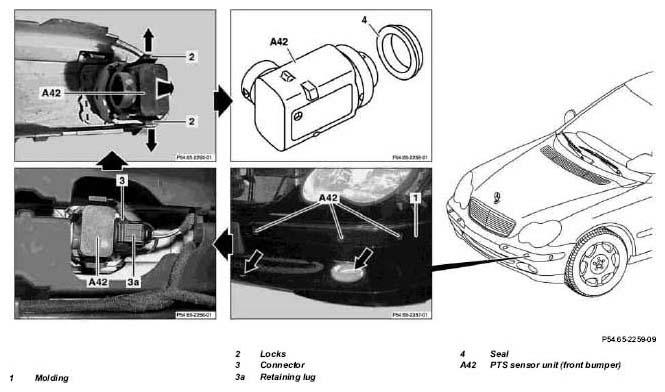

Fig 1: Identifying Parktronic System Sensors Remove/Install Components In Front Bumper - Shown On Model 203.0
Shown on model 203.0
| Removal, installation | |||
| 1 | Remove ram strip (1) from front bumper | Refer to: ↓ |
|
| Remove protective strip at front and rear bumpers, install. | AR88.80-P-2220P | ||
| 2 | Unlock connector (3) and disconnect | ||
| 3 | Release locks (2) in direction of arrow | Fig 2 | |
| 4 | Remove PTS sensor unit (front bumper) (A42) from bracket | ||
| 5 | Install in the reverse order |
