Remove/install poly V-belt - AR13.22-P-1202PK

ENGINE 111.955 in MODEL 203.045 /245 /745

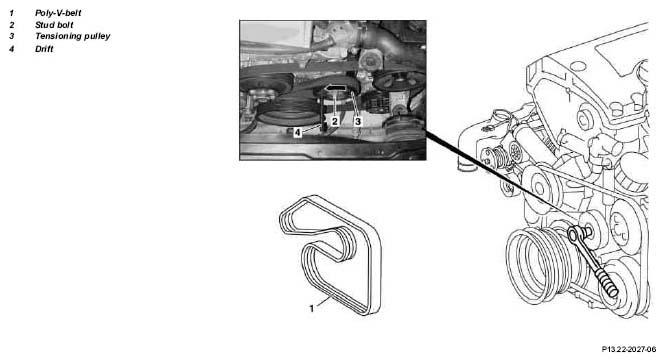

Fig 1: Identifying Poly V-Belt Remove/Install Components - Engine 111.955 In Model 203.045 /245 /745

	Remove
1	Remove supercharger poly-V-belt		AR13.21-P-1202PK
2	Loosen poly-V-belt (1) and remove	Swivel stud bolt (2) at tensioning pulley (3) in anti-clockwise direction (arrow) for this step. Lock tensioning pulley with pin or drift (4).
	Check
3	Inspect belt pulley sections and tensioning device for damage and dirt, replace if necessary
4	Inspect poly V-belt (1), replace if necessary
	Check poly-V-belt in visible area for wear		AP13.22-P-1352Z
	Install
5	Fit on poly V-belt (1), tension	Installation:  Do not use any belt wax or similar products Fit on poly V-belt as specified in running diagram ↓
		Running diagram of poly V-belt.	AR13.22-P-3902-02PR
6	Install poly V-belt of compressor		AR13.21-P-1202PK
